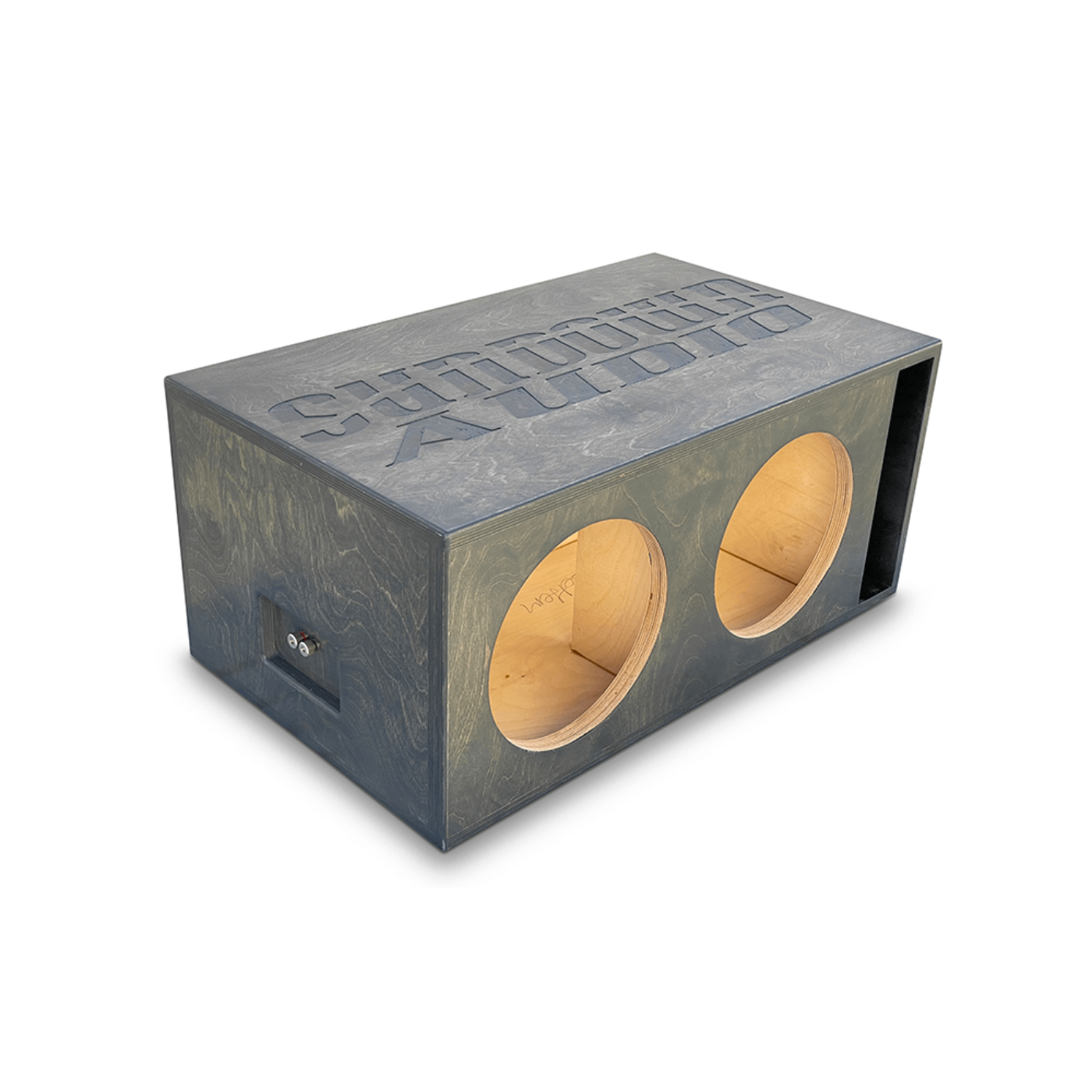

Sundown Audio Dual 12" Uv2 Ported Enclosure - AABE-SA-Uv2-D12-RD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for dual Sundown Audio Uv2 12" subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium ¾” Russian Baltic Birch we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for dual Sundown Audio Uv2 12" subwoofers.
Specifications
| Net Internal Volume |
4.0 cubic feet |
| Tuning Frequency |
33 Hz |
| Port Area |
57.375 sq in |
| Port Dimensions |
13.5" (L) x 4.25" (H) |
| Subwoofer Cutout Diameter |
11.2" |
| Enclosure Material |
3/4" (18mm) Birch Plywood |
| Baffle Construction |
Solid 1" (24mm) Baffle |
| Center Brace |
3/4" (18mm) Center Baffle Brace |
| Plywood Construction |
13-ply Birch Veneer (1” Baffle: 17-ply) |
| Finish |
Gray Stained |
| Terminal Type |
Pre-wired Metal Binding Post with 10ga OFC Wire |
Dimensions/Weight
- 15.0” tall
- 33.375” wide
- 23” deep
What Our Experts Think
-
Tuned for Dual Uv2 12"s: Designed specifically to maximize the low-end power and efficiency of two Sundown Uv2 12" subwoofers.
-
Massive, Clean Output: Ported enclosure delivers deep, tight bass with high SPL and musical accuracy.
-
Heavy-Duty Build: Premium MDF construction with internal bracing ensures durability under high excursion and wattage.
-
Flared Port System: Minimizes turbulence and distortion, improving airflow and bass response.
-
Ready for Serious Systems: Ideal for users demanding ground-shaking bass in daily or demo setups.
Q&A
Q: What is the Sundown Audio Dual 12" Uv2 Ported Enclosure?
A: A high-output ported enclosure designed for dual Sundown Audio 12" Uv2 subwoofers, delivering powerful, low-frequency bass with precision and efficiency.
Q: Is this enclosure intended for daily use or SPL?
A: Tuned for loud daily use with serious SPL potential—ideal for music lovers who want deep, hard-hitting bass.
Q: What materials is it constructed from?
A: Made from ¾" MDF with reinforced internal bracing and precision-tuned ports for durability, airflow, and optimal acoustic performance.
Q: Can it fit other 12" subwoofers?
A: No, it's specifically engineered for the Sundown 12" Uv2 subs. Fit and performance with other models is not guaranteed.
Q: Does the enclosure come pre-assembled?
A: Yes, it arrives fully assembled—just install your Uv2 subs and wire them up.
Maintenance Tips
-
Regular Cleaning: Use a soft, dry cloth to gently remove dust from the enclosure's gray-stained birch veneer surface and ports.
-
Inspect for Damage: Periodically examine the subwoofers and ports for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofers' recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofers.
