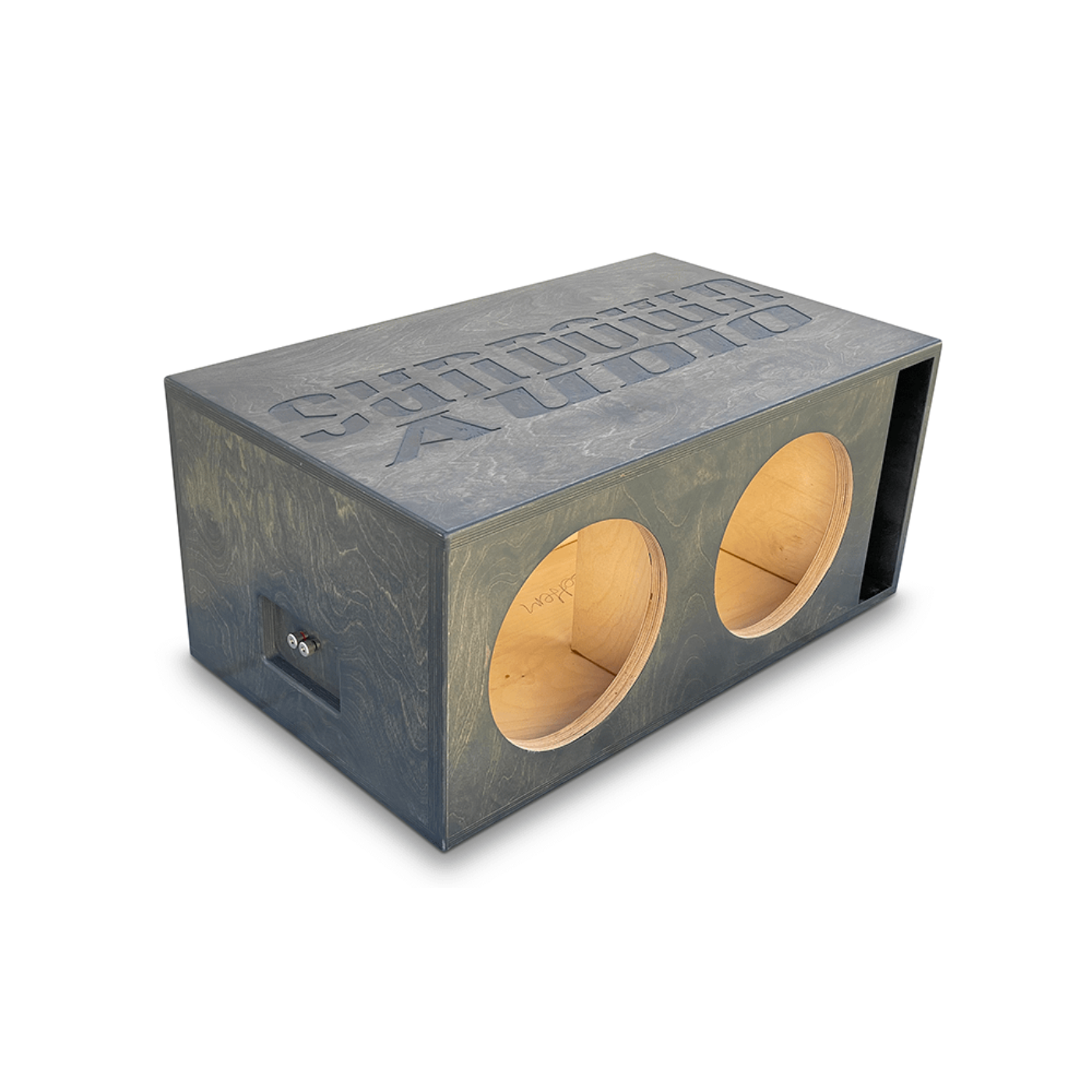

Sundown Audio Dual 12" NSv5 Ported Enclosure - AABE-SA-NSv5-D12-HD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for dual Sundown Audio NSv5 12" subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for dual Sundown Audio NSv5 12" subwoofers.
Specifications
| Net Internal Volume |
5.0 cubic feet |
| Tuning Frequency |
31 Hz |
| Port Area |
70 sq in |
| Port Dimensions |
16” (L) x 4.375” (H) |
| Subwoofer Cut-Out Diameter |
11.01 inches |
| Material |
1" Birch Plywood |
| Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 18" tall
- 38.625" wide
- 21.75″ deep
What Our Experts Think
-
Custom-Tuned for Dual NSv5 12"s: Specifically engineered to match the performance and excursion profile of two Sundown NSv5 12" subwoofers.
-
Deep, Controlled Bass: Ported design delivers thunderous low-end response with clarity and minimal distortion.
-
Rugged Construction: Built from high-grade MDF with reinforced bracing to withstand extreme sound pressure and long-term use.
-
Optimized Porting: Oversized flared port reduces turbulence, increases efficiency, and maximizes bass output.
-
High Power Capability: Designed to handle the intense RMS and excursion demands of the NSv5 series with ease.
Q&A
Q: What is the Sundown Audio Dual 12" NSv5 Ported Enclosure?
A: A high-output dual 12" ported enclosure custom-built for Sundown Audio NSv5 subwoofers, engineered for deep, powerful bass and optimized airflow.
Q: Is this enclosure made for daily use or SPL?
A: Tuned for daily use with competition-level performance, delivering clean, low-end bass ideal for music enthusiasts and SPL setups alike.
Q: What materials are used in its construction?
A: Built from rugged ¾" MDF with double baffle reinforcement and an optimized port system to ensure durability, airflow, and sound precision.
Q: Can it fit other 12" subwoofers?
A: No, it's specifically designed for Sundown 12" NSv5 subwoofers. Using other subs may affect fit and performance.
Q: Is the enclosure pre-assembled?
A: Yes, the enclosure is fully assembled—just mount your NSv5 subs, wire them up, and enjoy premium bass.
Maintenance Tips
-
Regular Cleaning: Wipe the enclosure with a soft, dry cloth to prevent dust accumulation on the surface and ports.
-
Inspect for Damage: Periodically check the subwoofers and ports for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofers' recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofers.
