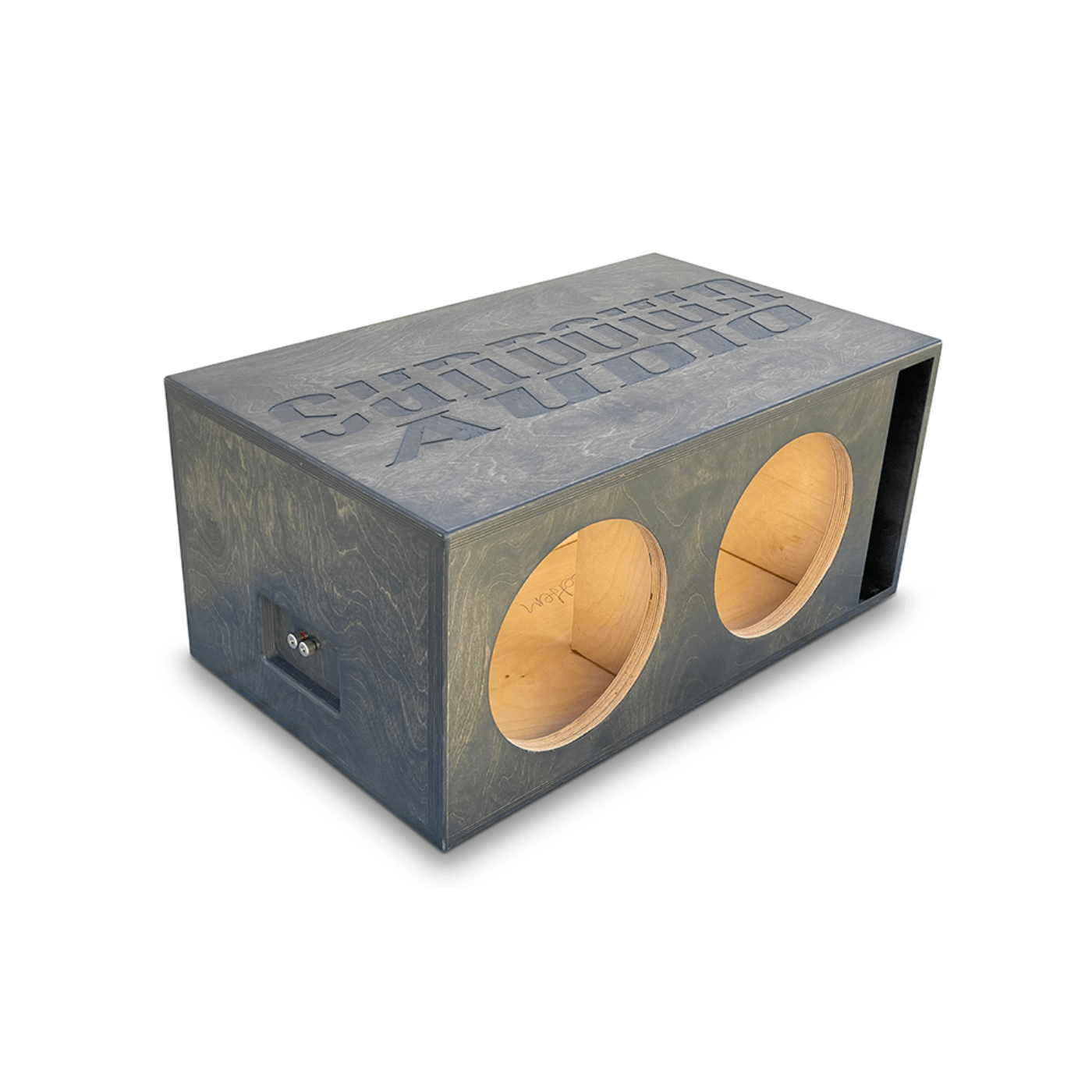

Sundown Audio Dual 10" NSv6 Ported Enclosure - AABE-SA-NSv6-D10-HD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for dual Sundown Audio NSv6 10" subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for dual Sundown Audio NSv6 10" subwoofers.
Specifications
| Net Internal Volume |
3.0 cubic feet |
| Tuning Frequency |
32 Hz |
| Port Area |
42 sq in |
| Port Dimensions |
12” (L) x 3.5” (H) |
| Subwoofer Cut-Out Diameter |
10.01 inches |
| Material |
1" Birch Plywood |
| Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 14" tall
- 30.75" wide
- 23″ deep
What Our Experts Think
-
Optimized for Dual NSv6 10"s: Custom-designed to unlock the full potential of two Sundown NSv6 10" subwoofers.
-
Deep, Clean Bass: Ported design delivers tight, controlled lows with maximum clarity and minimal distortion.
-
Built Tough: Constructed from high-quality MDF with internal bracing for durability and stability under high power.
-
Efficient Airflow: Large, flared port minimizes turbulence, boosting bass output while maintaining clean, deep response.
-
Handles High Power: Engineered to support the high excursion and wattage demands of dual NSv6 10" subwoofers.
Q&A
Q: What is the Sundown Audio Dual 10" NSv6 Ported Enclosure?
A: A high-performance dual 10" ported enclosure designed specifically for the Sundown Audio NSv6 subwoofers, delivering deep bass and high output with optimized airflow.
Q: Is this enclosure suited for daily use or SPL?
A: Tuned for daily use with competition-grade output, providing clean, punchy bass and impressive low-frequency extension for music and moderate SPL setups.
Q: What materials are used in its construction?
A: Constructed from durable ¾" MDF with double baffle reinforcement and high-flow porting for maximum strength, airflow, and sound performance.
Q: Will this work with other 10" subwoofers?
A: No, it's specifically designed for the Sundown Audio 10" NSv6 subwoofers. Other 10" subs may not fit or perform as intended.
Q: Is the enclosure pre-assembled?
A: Yes, the enclosure ships fully assembled—just install your NSv6 subwoofers and wire them up.
Maintenance Tips
-
Regular Cleaning: Wipe the enclosure with a microfiber cloth to prevent dust and dirt buildup.
-
Check for Damage: Inspect both subwoofers and ports for any cracks, tears, or other signs of wear.
-
Amplifier Compatibility: Ensure your amplifier is properly matched to the subwoofers' power ratings to avoid damage.
-
Proper Ventilation: Keep the enclosure in a well-ventilated space to ensure adequate airflow and prevent overheating.
-
Secure Installation: Mount the enclosure firmly to reduce vibrations and prevent any rattling that could affect performance.
