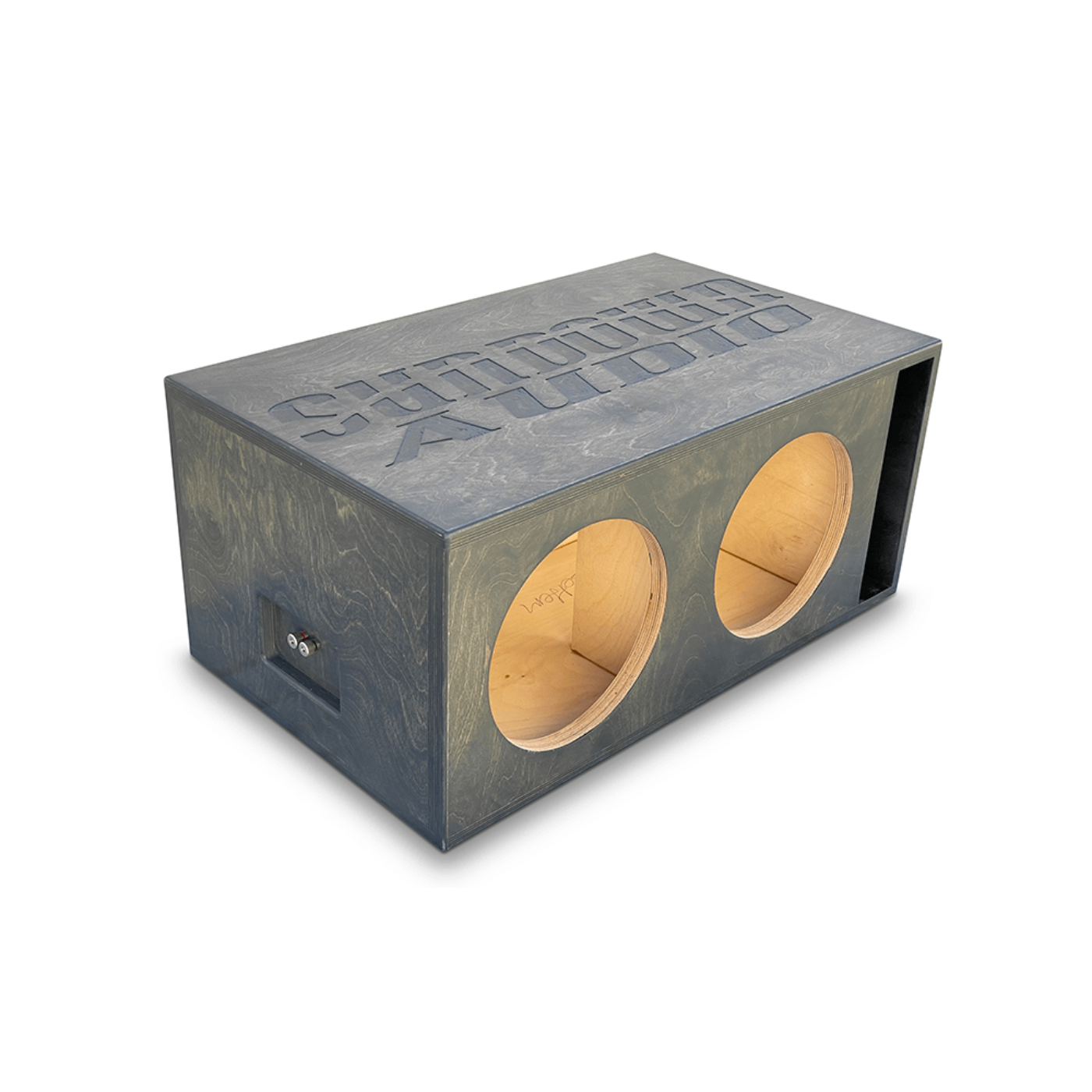

Sundown Audio Dual 12" NSv6 Ported Enclosure - AABE-SA-NSv6-D12-HD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for dual Sundown Audio NSv6 12" subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for dual Sundown Audio NSv6 12" subwoofers.
Specifications
| Net Internal Volume |
5.0 cubic feet |
| Tuning Frequency |
31 Hz |
| Port Area |
70 sq in |
| Port Dimensions |
16” (L) x 4.375” (H) |
| Subwoofer Cut-Out Diameter |
11.01 inches |
| Material |
1" Birch Plywood |
| Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 18" tall
- 38.625" wide
- 21.75″ deep
What Our Experts Think
-
Engineered for Dual NSv6 12"s: Purpose-built to match the performance characteristics of two Sundown NSv6 12" subwoofers.
-
Extreme Bass Output: Ported design delivers ultra-deep, clean, and controlled lows with impressive SPL capabilities.
-
Heavy-Duty Build: Premium MDF with robust internal bracing provides the structural integrity needed for extreme power levels.
-
High-Efficiency Port: Oversized flared port enhances airflow, reduces turbulence, and boosts output with minimal port noise.
-
Power Handling Beast: Designed to support the high excursion and RMS demands of the NSv6 series without compromise.
Q&A
Q: What is the Sundown Audio Dual 12" NSv6 Ported Enclosure?
A: A precision-engineered dual 12" ported enclosure built specifically for Sundown Audio NSv6 subwoofers, delivering extreme bass output and deep low-frequency performance.
Q: Is this enclosure designed for daily use or SPL?
A: Tuned for high-output daily use with SPL-level capabilities, it offers clean, thunderous bass and excellent low-end control.
Q: What materials are used in the build?
A: Crafted from heavy-duty ¾" MDF with double baffle construction and high-efficiency porting for durability, airflow, and maximum acoustic performance.
Q: Can this be used with other 12" subwoofers?
A: No, it's custom-designed for the Sundown 12" NSv6. Other subwoofers may not fit or perform correctly.
Q: Is it pre-assembled?
A: Yes, it arrives fully assembled—just drop in your NSv6 subs, wire them up, and you're ready to go.
Maintenance Tips
-
Regular Cleaning: Wipe the enclosure with a soft, dry cloth to prevent dust accumulation on the surface and ports.
-
Inspect for Damage: Periodically check the subwoofers and ports for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofers' recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofers.
