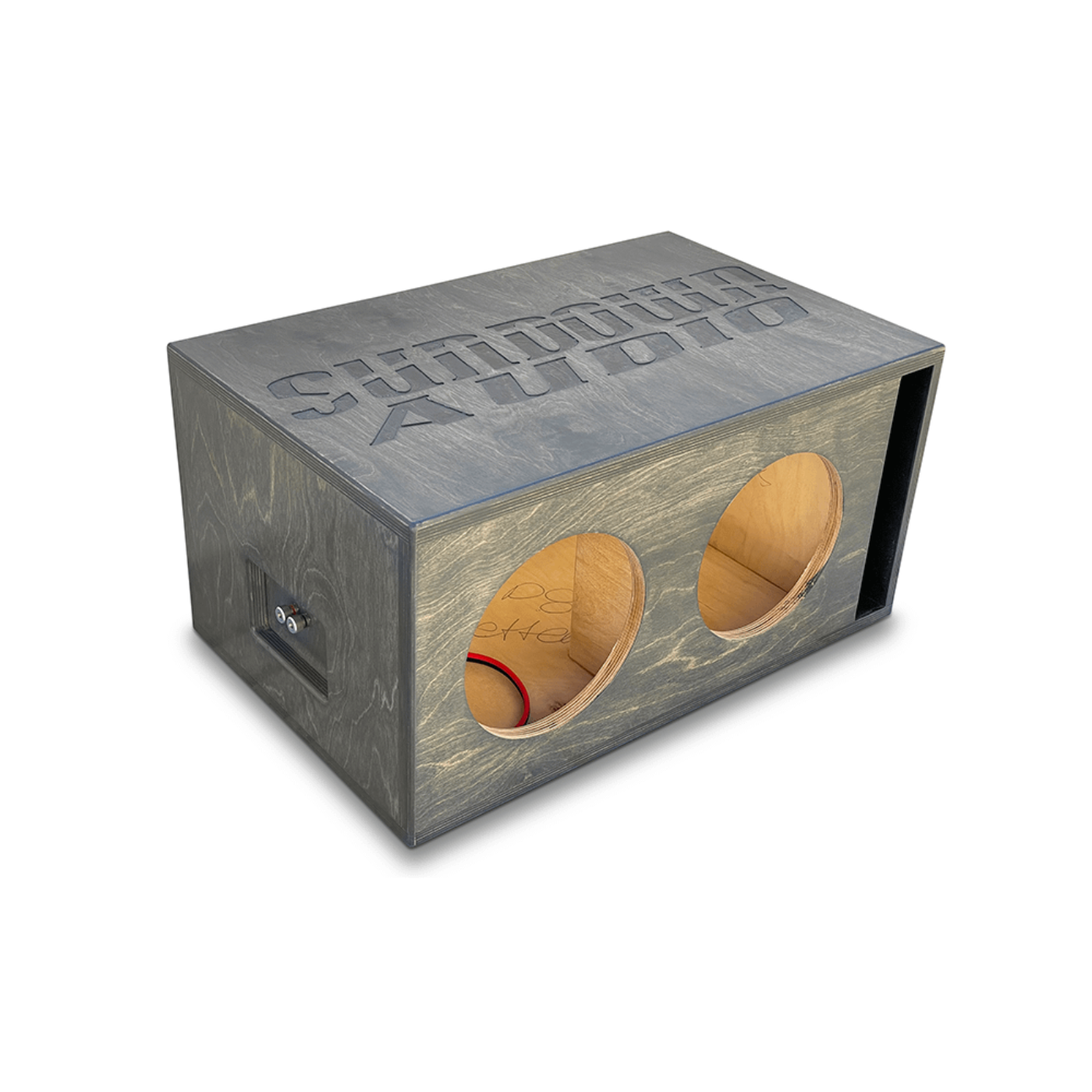

Sundown Audio Dual 8" SAv3 Ported Enclosure - AABE-SA-SAv3-D8-SD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for dual Sundown Audio SAv3 8" subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium ¾” Russian Baltic Birch we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our strong baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 1000W RMS (dual enclosures – 2000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for dual Sundown Audio SAv3 8" subwoofer.
Specifications
| Net Internal Volume |
1.3 cubic feet |
| Tuning Frequency |
35 Hz |
| Port Area |
21 sq in |
| Port Dimensions |
10.5" (L) x 2" (H) |
| Subwoofer Cutout Diameter |
7.375" |
| Enclosure Material |
3/4" (18mm) Plywood |
| Center Brace |
3/4" (18mm) Center Baffle Brace |
| Plywood Construction |
13-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal Type |
Pre-wired Metal Binding Post with 10ga OFC Wire |
Dimensions/Weight
- 12" tall
- 24.75" wide
- 15″ deep
What Our Experts Think
-
Built for Dual SAv3 8"s: Precision-tuned to maximize output, clarity, and efficiency from two Sundown SAv3 8" subwoofers.
-
Surprisingly Deep Bass: Ported design delivers hard-hitting, tight, and clean low-end far beyond typical 8" expectations.
-
Space-Friendly, Power-Ready: Ideal for compact installs—trucks, sedans, or under-seat setups—without sacrificing output.
-
Durable MDF Build: Reinforced enclosure built to handle serious power and high excursion.
-
Flared Port System: Reduces port noise, boosts airflow, and improves overall bass efficiency.
Q&A
Q: What is the Sundown Audio Dual 8" SAv3 Ported Enclosure?
A: A high-output ported enclosure built for dual Sundown Audio 8" SAv3 subwoofers, delivering tight, clean bass with impressive depth in a compact footprint.
Q: Is it designed for daily use or SPL?
A: Tuned for powerful daily driving with solid SPL potential—perfect for music lovers who want big bass in small spaces.
Q: What is it made of?
A: Built from ¾" MDF with internal bracing and precision-tuned ports for durability, airflow, and optimized sound performance.
Q: Can it fit other 8" subwoofers?
A: No, it's specifically engineered for the 8" Sundown SAv3. Other models may not fit or perform correctly.
Q: Does it ship assembled?
A: Yes, it arrives fully assembled—just drop in your SAv3 subs and wire them up.
Maintenance Tips
-
Regular Cleaning: Use a soft, dry cloth to gently remove dust from the enclosure's gray-stained birch veneer surface and ports.
-
Inspect for Damage: Periodically examine the subwoofers and ports for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofers' recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofers.
