Sundown Audio Dual 8" Xv2 Ported Enclosure - AABE-SA-Xv2-D8-RD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for a pair of Sundown Audio Xv2 8” subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer a well build, well performing and good looking enclosure at an affordable price. Using premium ¾” Baltic Birch all around with a 1” baffle for added baffle strength, we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

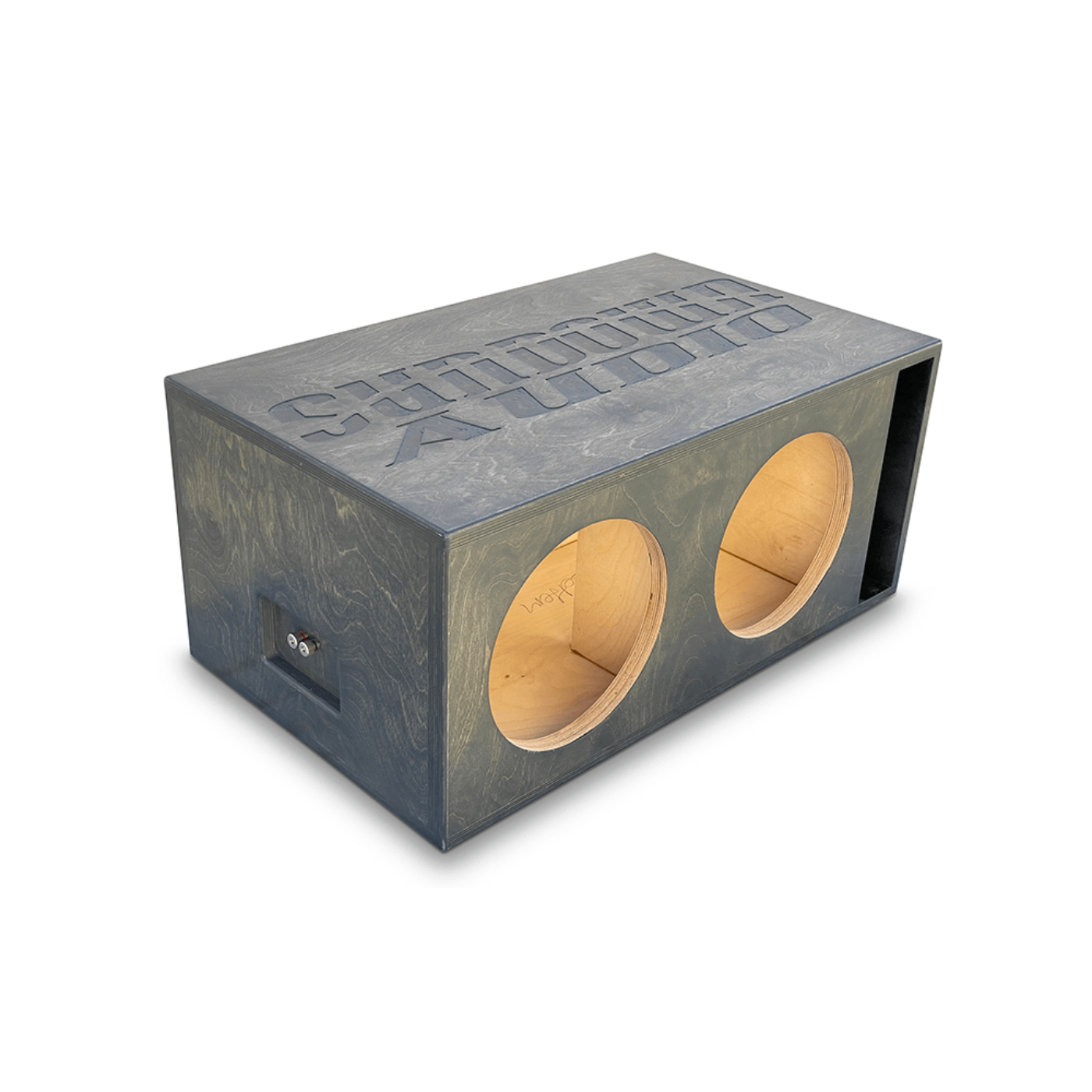

Custom built enclosure specifically for dual Sundown Audio Xv2 8" subwoofers.
Specifications
| Net Internal Volume |
2.0 cubic feet |
| Tuning Frequency |
34 Hz |
| Port Area |
27.025 sq in |
| Port Dimensions |
11.5" (L) x 2.35" (H) |
| Subwoofer Cutout Diameter |
7.36" |
| Enclosure Material |
3/4" (18mm) Plywood |
| Baffle Material |
Solid 1" (24mm) Baffle for Ultimate Strength |
| Plywood Construction |
13-ply Birch Veneer (1" Baffle: 17-ply) |
| Finish |
Gray Stained |
| Terminal Type |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 13” tall
- 18.5” wide
- 25.75” deep
What Our Experts Think
-
Custom-Tuned for Dual Xv2 8"s: Precision-engineered to maximize the output and accuracy of two Sundown Xv2 8" subwoofers.
-
Small Size, Big Sound: Ported design delivers rich, deep bass that outperforms expectations for 8" drivers.
-
Built to Handle Power: Constructed from premium MDF with internal bracing to withstand high SPL and wattage.
-
High-Efficiency Flared Port: Promotes smooth airflow, reduces port noise, and enhances bass response.
-
Ideal for Tight Spaces: Great choice for vehicles with limited space but big bass goal
Q&A
Q: What is the Sundown Audio Dual 8" Xv2 Ported Enclosure?
A: A precision-designed ported enclosure built for dual Sundown Audio 8" Xv2 subwoofers, offering tight, punchy bass with excellent low-end extension in a compact form.
Q: Is it made for daily driving or SPL?
A: Tuned for high-output daily use with strong SPL potential—perfect for maximizing bass in tight vehicle spaces.
Q: What is it made of?
A: Constructed from ¾" MDF with reinforced bracing and precision port tuning for durability, airflow, and high-quality sound.
Q: Can it fit other 8" subwoofers?
A: No, it is specifically engineered for Sundown Audio 8" Xv2 subs. Other models may not fit or perform correctly.
Q: Is the enclosure fully assembled?
A: Yes, it ships ready to use—just install your Xv2 subs and wire them u
Maintenance Tips
-
Regular Cleaning: Use a soft, dry cloth to gently remove dust from the enclosure's surface and ports.
-
Inspect for Damage: Periodically examine the subwoofers and ports for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofers' recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofers.
