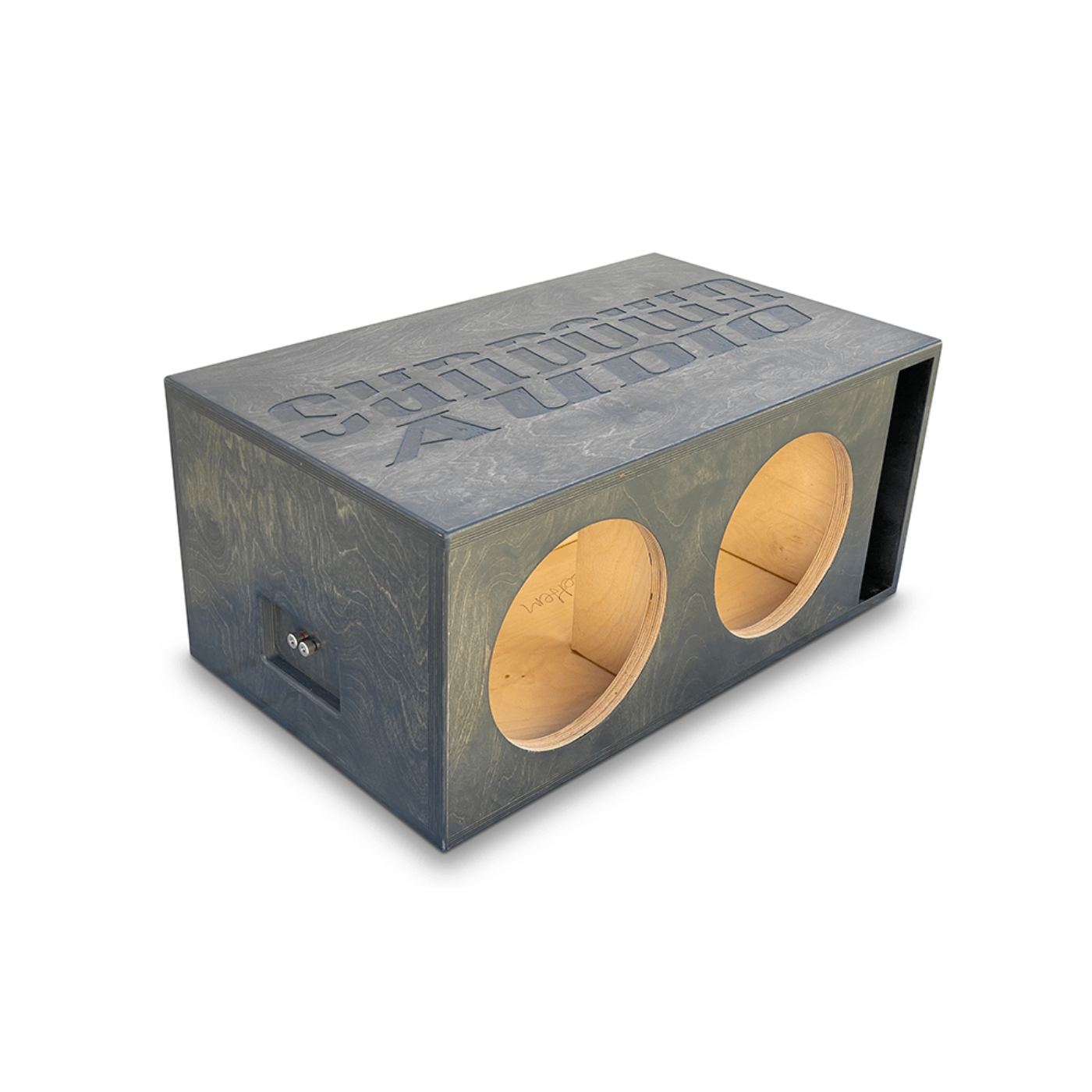

Sundown Audio Dual 12" Xv3 Ported Enclosure - AABE-SA-Xv3-D12-HD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for dual Sundown Audio Xv3 12" subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for dual Sundown Audio Xv3 12" subwoofers.
Specifications
| Net Internal Volume |
5.0 cubic feet |
| Tuning Frequency |
31 Hz |
| Port Area |
70 sq in |
| Port Dimensions |
16” (L) x 4.375” (H) |
| Subwoofer Cut-Out Diameter |
11.01 inches |
| Material |
1" Birch Plywood |
| Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 18" tall
- 38.625" wide
- 21.75″ deep
What Our Experts Think
-
Designed for Dual Xv3 12"s: Precision-tuned to extract maximum performance from two Sundown Xv3 12" subwoofers.
-
Hard-Hitting, Clean Bass: Ported design delivers deep, tight lows with impressive clarity and minimal distortion.
-
Heavy-Duty Build: Crafted from premium MDF with internal bracing for structural integrity and long-term durability.
-
High-Efficiency Porting: Large, flared port enhances airflow, reduces turbulence, and boosts bass output.
-
Built for Power: Capable of handling the high excursion and wattage demands of the Xv3 series with ease.
Q&A
Q: What is the Sundown Audio Dual 12" Xv3 Ported Enclosure?
A: A premium dual 12" ported enclosure designed specifically for the Sundown Audio Xv3 subwoofers, built to deliver powerful, clean bass with optimal airflow and efficiency.
Q: Is this enclosure ideal for daily use or SPL?
A: Tuned for high-output daily use, it provides deep, dynamic bass with excellent low-end extension, suitable for both music enthusiasts and moderate SPL applications.
Q: What materials are used in its construction?
A: Constructed from ¾" MDF with double baffle reinforcement and an optimized port system to ensure strength, durability, and superior sound quality.
Q: Will this work with other 12" subwoofers?
A: No, this enclosure is designed exclusively for the Sundown Audio 12" Xv3 subwoofers. Compatibility with other 12" subs is not guaranteed.
Q: Is the enclosure pre-assembled?
A: Yes, the enclosure comes fully assembled—just install your Xv3 subwoofers and wire them up for immediate use.
Maintenance Tips
-
Regular Cleaning: Gently wipe the enclosure with a soft, dry cloth to remove dust and debris.
-
Inspect for Damage: Periodically check the subwoofers and ports for any signs of wear or damage.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofers' recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage.
