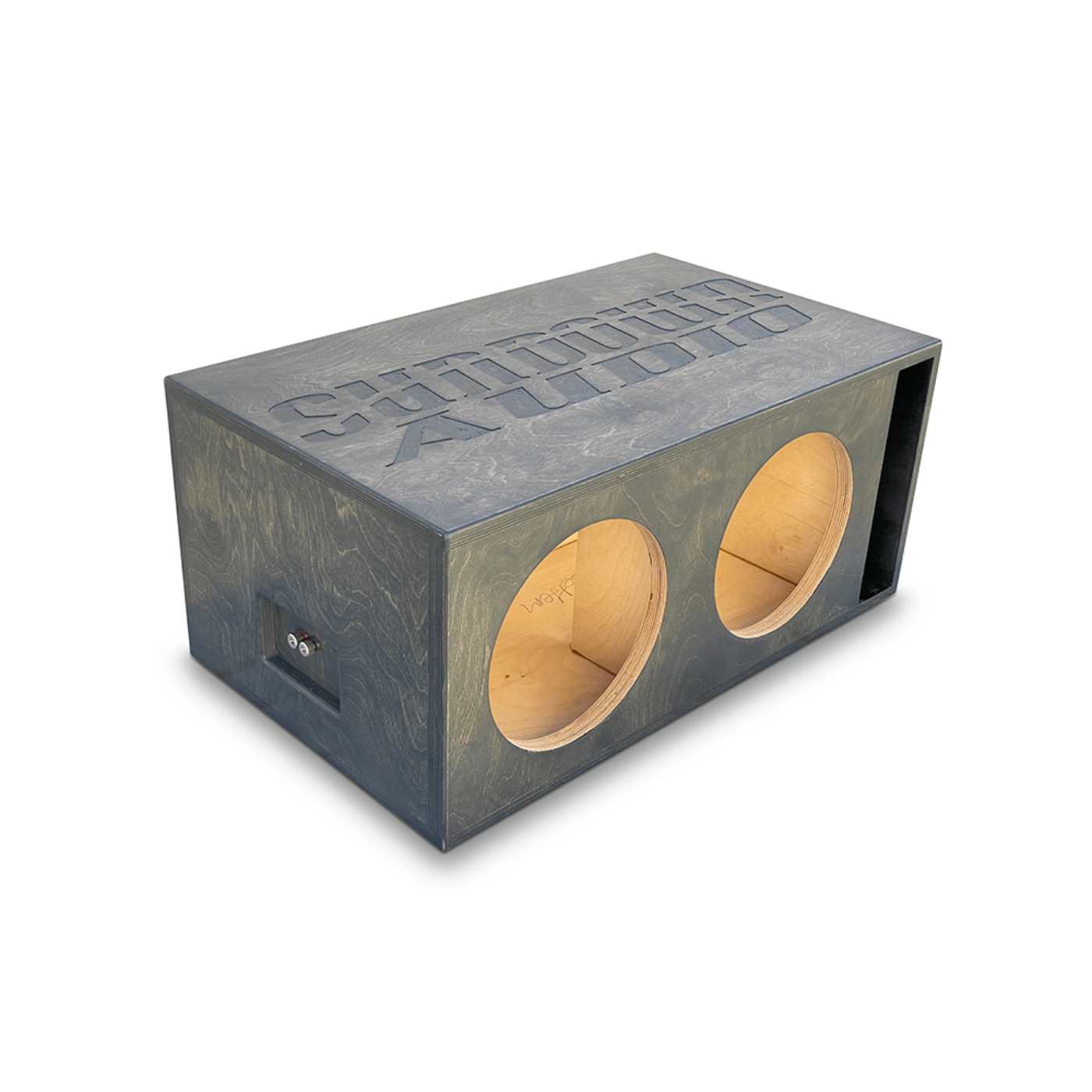

Sundown Audio Dual 12" Zv4 Ported Enclosure - AABE-SA-Zv4-D12-HD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for dual Sundown Audio Zv4 12" subwoofers. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for dual Sundown Audio Zv4 12" subwoofers.
Specifications
| Net Internal Volume |
5.0 cubic feet |
| Tuning Frequency |
31 Hz |
| Port Area |
70 sq in |
| Port Dimensions |
16” (L) x 4.375” (H) |
| Subwoofer Cut-Out Diameter |
11.01 inches |
| Material |
1" Birch Plywood |
| Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 18" tall
- 38.625" wide
- 21.75″ deep
What Our Experts Think
-
Engineered for Dual Zv4 12"s: Custom-designed to maximize the bass performance of two Sundown Zv4 12" subwoofers in a single, high-output enclosure.
-
Punchy, Clean Bass: Ported design provides deep, hard-hitting lows with excellent clarity and minimal distortion.
-
Durable Construction: Built with high-quality MDF and reinforced internal bracing for long-lasting performance under heavy bass loads.
-
Efficient Airflow: Large, flared ports improve airflow, reducing port noise and enhancing bass efficiency.
-
Handles Serious Power: Built to manage the high excursion and power demands of dual Zv4 12" subwoofers.
Q&A
Q: What is the Sundown Audio Dual 12" Zv4 Ported Enclosure?
A: A high-performance dual 12" ported enclosure designed specifically for the Sundown Audio Zv4 subwoofers, engineered to produce deep, rich bass with high output and efficient airflow.
Q: Is this enclosure designed for daily use or SPL?
A: Tuned for high-output daily use, it delivers powerful, clear bass with excellent low-frequency extension, perfect for both music lovers and moderate SPL enthusiasts.
Q: What materials are used in its construction?
A: Built from ¾" MDF with double baffle reinforcement and an optimized port system to ensure durability, strength, and superior sound performance.
Q: Will this fit other 12" subwoofers?
A: No, this enclosure is custom-built for the Sundown Audio 12" Zv4 subwoofers. Other 12" subwoofers may not fit or perform correctly.
Q: Is the enclosure pre-assembled?
A: Yes, the enclosure is fully assembled—simply install your Zv4 subwoofers and wire them up for immediate use.
Maintenance Tips
-
Regular Cleaning: Dust the enclosure regularly using a soft, dry cloth to keep it free from dirt and debris.
-
Inspect Subwoofers: Check the subwoofers and ports for any signs of damage, such as tears or cracks.
-
Power Matching: Ensure the amplifier is within the recommended power range for the subwoofers to prevent overdriving.
-
Ventilation: Keep the enclosure in a well-ventilated area to ensure proper airflow and avoid overheating.
-
Secure Placement: Secure the enclosure to reduce unwanted vibrations and ensure optimal sound performance.
