Sundown Audio Single 10" Uv2 Ported Enclosure - AABE-SA-Uv2-S10-RD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for a Sundown Audio Uv2 10" subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium ¾” Russian Baltic Birch we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

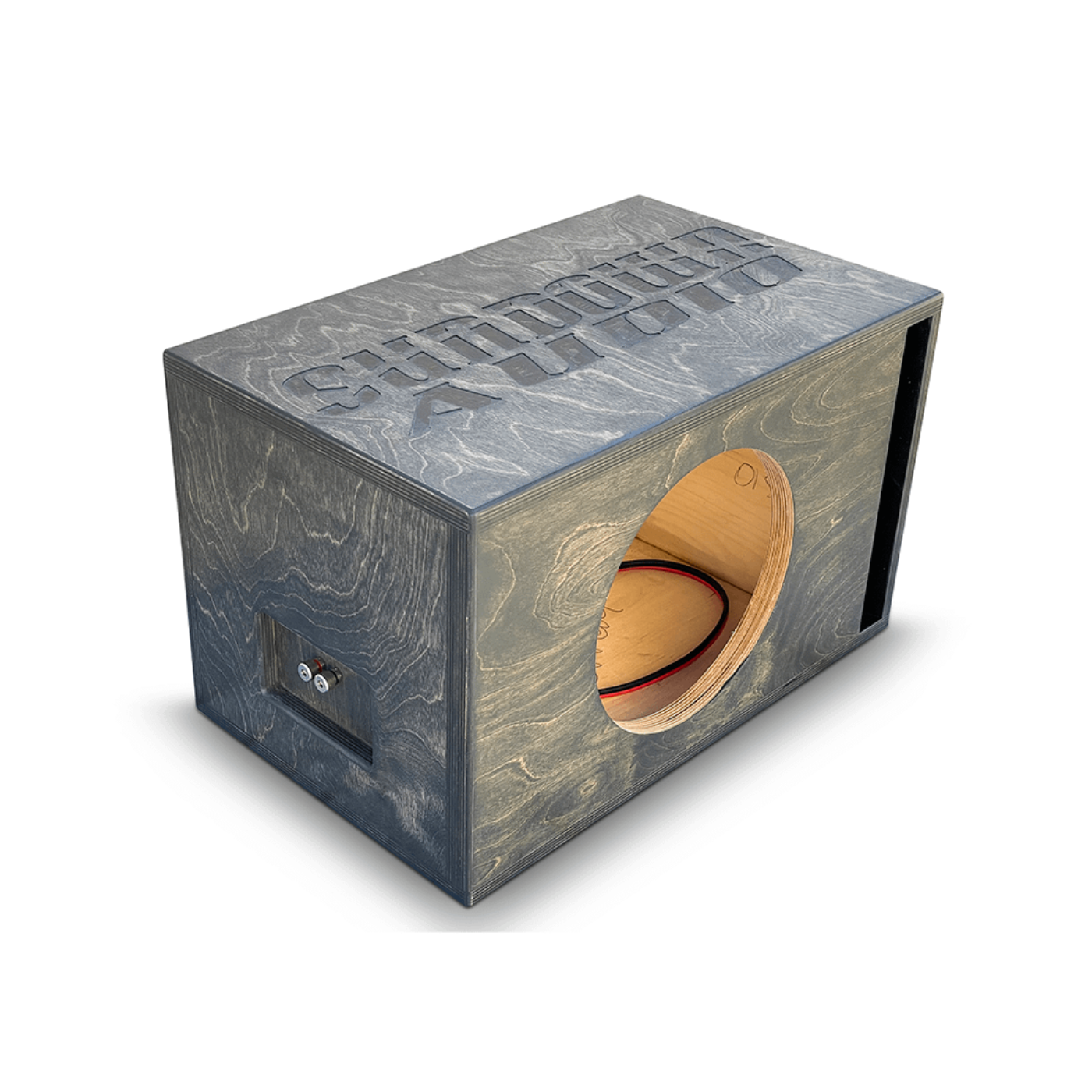

Custom built enclosure specifically for the Sundown Audio Uv2 10" subwoofer.
Specifications
| Net Internal Volume |
1.0 cubic feet |
| Tuning Frequency |
34 Hz |
| Port Area |
14.375 sq in |
| Port Dimensions |
11.5” (Length) x 1.25” (Height) |
| Subwoofer Cut-Out Diameter |
9.17 inches |
| Material |
3/4" (18mm) Birch Plywood |
| Baffle |
Solid 1” (24mm) Baffle for Ultimate Strength |
| Construction |
13-ply Birch Veneer (1” Baffle with 17-ply Birch) |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post with 10ga OFC Wire |
Dimensions/Weight
- 13” tall
- 13” wide
- 21.75” deep
What Our Experts Think
-
Precision-Tuned for the Uv2 10": Engineered specifically to unlock the full power and depth of the Sundown Uv2 10" subwoofer.
-
Hard-Hitting Low Frequencies: Ported design delivers deep, tight, and responsive bass from a compact form factor.
-
Space-Efficient with Serious Output: Ideal for daily drivers or smaller vehicles where space is limited but bass can’t be compromised.
-
Heavy-Duty Construction: Premium MDF with internal bracing ensures durability under high-power use.
-
Flared Port Design: Reduces port noise, improves airflow, and maximizes efficiency and sound clarity.
Q&A
Q: What is the Sundown Audio Single 10" Uv2 Ported Enclosure?
A: A high-output ported enclosure custom-engineered for the Sundown Audio 10" Uv2 subwoofer, designed to deliver deep, clean bass with maximum efficiency.
Q: Is this enclosure made for daily driving or SPL?
A: Tuned for high-performance daily use with strong SPL capabilities, offering responsive and hard-hitting low-end.
Q: What materials is it built from?
A: Crafted from ¾" MDF with reinforced internal bracing and precision port tuning for durability, airflow, and sound quality.
Q: Will it fit other 10" subwoofers?
A: No, this enclosure is built specifically for the Sundown Audio 10" Uv2. Compatibility with other subs is not guaranteed.
Q: Is the enclosure pre-assembled?
A: Yes, it ships fully assembled—just drop in your Uv2 sub and wire it up.
Maintenance Tips
-
Regular Cleaning: Use a soft, dry cloth to gently remove dust from the enclosure's surface and ports.
-
Inspect for Damage: Periodically examine the subwoofer and port for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofer's recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofer.
