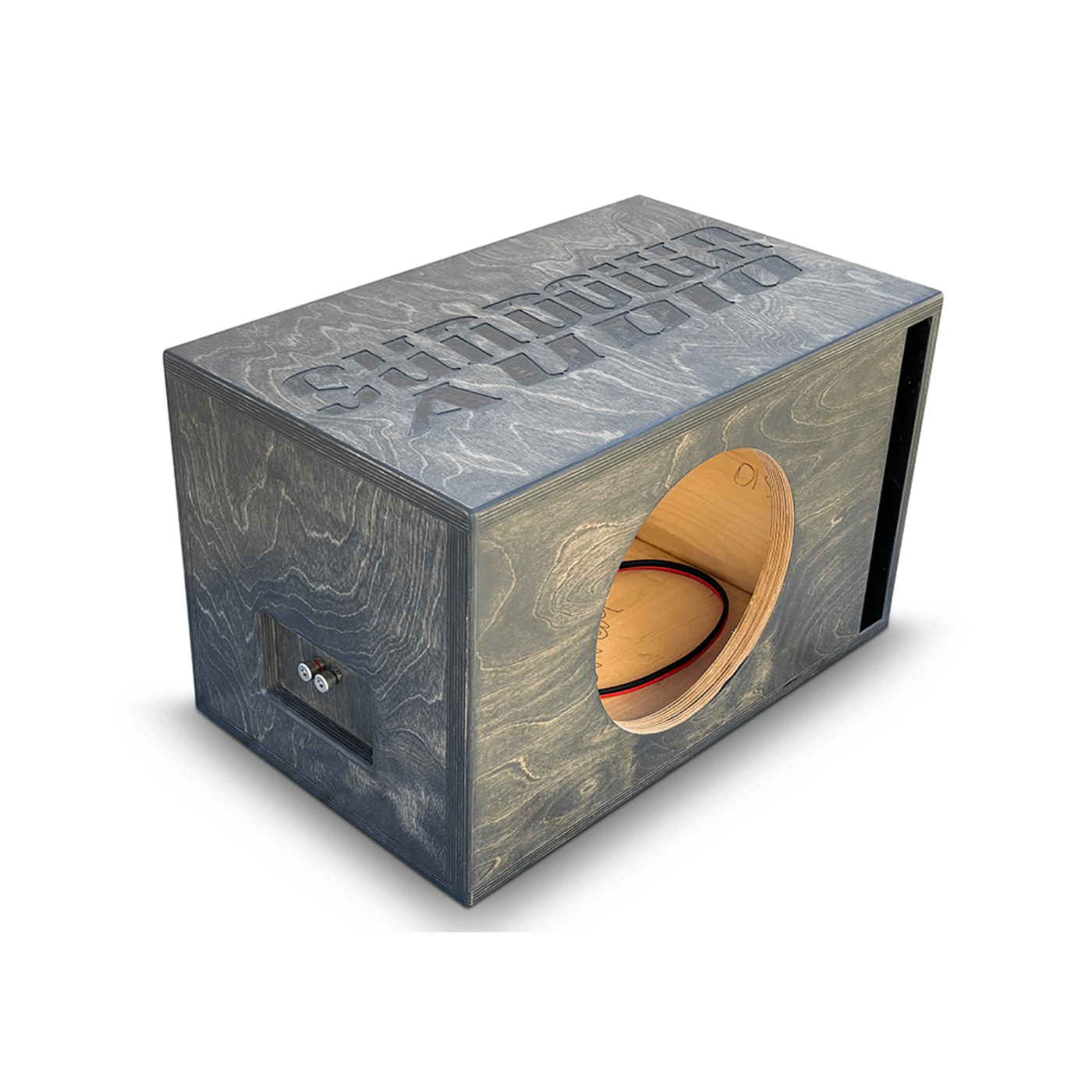

Sundown Audio Single 12" Zv4 Ported Enclosure - AABE-SA-Zv4-S12-HD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio Zv4 12” subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for the Sundown Audio Zv4 12" subwoofer.
Specifications
| Net Internal Volume |
2.5 cubic feet |
| Tuning Frequency |
31 Hz |
| Port Area |
35 sq in |
| Port Dimensions |
14” (L) x 2.5” (H) |
| Subwoofer Cut-Out Diameter |
11.01 inches |
| Material |
1" Birch Plywood |
| Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 16” tall
- 27.375” wide
- 19” deep
What Our Experts Think
-
Perfectly Tuned for Zv4 12": Specifically designed to extract the best performance from the Sundown Zv4 12" subwoofer.
-
Punchy, Deep Bass: Ported design delivers hard-hitting, responsive lows with clarity and minimal distortion.
-
Built to Last: Constructed from high-quality MDF with internal bracing for extra durability under high power loads.
-
Maximized Airflow: Flared port minimizes noise and enhances bass efficiency at higher volumes.
-
Handles Big Power: Designed to handle the high wattage and excursion demands of the Zv4 series.
Q&A
Q: What is the Sundown Audio Single 12" Zv4 Ported Enclosure?
A: A custom-engineered ported enclosure built specifically for the Sundown Audio 12" Zv4 subwoofer, delivering powerful, deep bass with efficient airflow.
Q: Is this enclosure suited for daily use or SPL?
A: Tuned for high-output daily use, offering clean, impactful bass and great low-frequency extension, ideal for music enthusiasts.
Q: What materials are used in its construction?
A: Constructed from ¾" MDF with a double baffle for durability, reinforced with optimized porting to enhance airflow and sound quality.
Q: Will it work with other 12" subwoofers?
A: No, this enclosure is specifically designed for the Sundown 12" Zv4. Other 12" subwoofers may not fit or perform correctly.
Q: Is it pre-assembled?
A: Yes, it arrives fully assembled—simply install your Zv4 subwoofer and wire it up.
Maintenance Tips
-
Regular Cleaning: Use a microfiber cloth to gently clean the enclosure and prevent dust accumulation.
-
Inspect for Damage: Check the subwoofer and port for any visible wear or damage, especially after heavy use.
-
Proper Amp Matching: Avoid under or over-driving the subwoofer by matching the amplifier’s power output to the sub’s recommended specifications.
-
Keep Vents Clear: Ensure the port and vents remain unobstructed to maintain optimal airflow and sound quality.
-
Stable Mounting: Secure the enclosure firmly to avoid any movement that may cause vibrations or potential damage.
