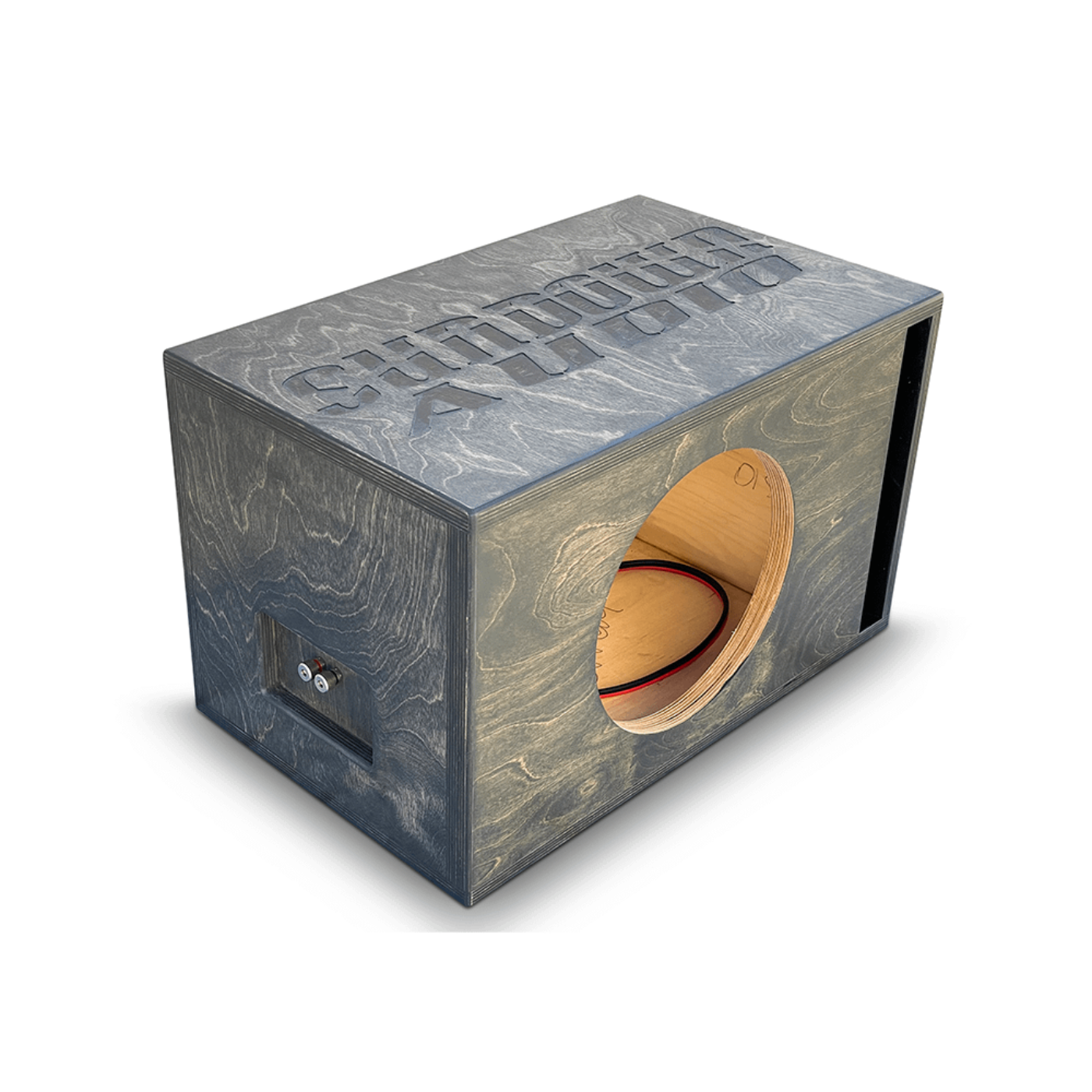

Sundown Audio Single 12" Zv5 Ported Enclosure - AABE-SA-Zv5-S12-HD

Sundown Audio Single 12" Zv5 Ported Enclosure - AABE-SA-Zv5-S12-HD

Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio Zv5 12” subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

Custom built enclosure specifically for the Sundown Audio Zv5 12" subwoofer.

 Specifications

Dimensions/Weight

• 16” tall
• 27.375” wide
• 19” deep

What Our Experts Think

• Tailored for Zv5 12" Subwoofer: Specifically engineered to complement the Sundown Audio Zv5 12" subwoofer, ensuring optimal performance and sound quality.

• Deep Bass Response: With a net internal volume of 2.5 cubic feet and a tuning frequency of 31 Hz, this enclosure delivers powerful and precise low-frequency output.

• Robust Construction: Crafted from 1" (24mm) birch plywood with 17-ply veneer, providing exceptional durability and acoustic integrity.

• Efficient Port Design: Features a 35 sq. in. port area with dimensions of 14" x 2.5", facilitating smooth airflow and reducing distortion.

• Sleek Aesthetic: Finished with a gray stained veneer and polyurethane coating, offering a stylish and rugged appearance that complements any audio system setup.

Q&A

Q: What is the Sundown Audio Single 12" Zv5 Ported Enclosure (AABE-SA-Zv5-S12-HD)?
A: This is a custom-engineered ported enclosure built specifically for the Sundown Audio Zv5 12" subwoofer, designed to deliver deep, powerful, and clean bass for high-performance systems.

Q: What materials are used in the enclosure?
A: The enclosure is built from 1" thick Baltic birch plywood with 17-ply birch veneer, offering superior strength and acoustic properties. It is finished in a high-quality gray stain.

Q: Is the enclosure compatible with other 12" subwoofers?
A: While it's optimized for the Sundown Audio Zv5 12", it may work with other subwoofers with similar cutout and air space requirements, but performance may vary.

Q: What are the exterior dimensions of the enclosure?
A: The enclosure measures 16" in height, 27.375" in width, and 19" in depth—ideal for larger vehicle installations where space is available.

Q: Does the enclosure come pre-wired?
A: Yes, it comes pre-wired with a metal binding post for easy subwoofer hookup.

Q: Is this enclosure competition-ready?
A: Yes, it's designed to deliver competition-grade bass performance and can handle the demands of high-output systems.

Maintenance Tips

• Dust Frequently: Use a microfiber cloth to keep the enclosure and woofer clean.

• Inspect Seals & Port: Ensure the port is unobstructed and the enclosure is airtight.

• Secure Wiring: Check all wire connections for tightness and signs of wear or corrosion.

• Listen for Issues: Rattling, distortion, or loss of bass may indicate enclosure or sub damage.

• Protect from Elements: Avoid exposure to moisture and direct sunlight; store in a dry, cool place.
