Sundown Audio Single 15" Uv1 Ported Enclosure - AABE-SA-Uv1-S15-RD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for a Sundown Audio Uv1 15" subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium ¾” Russian Baltic Birch we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

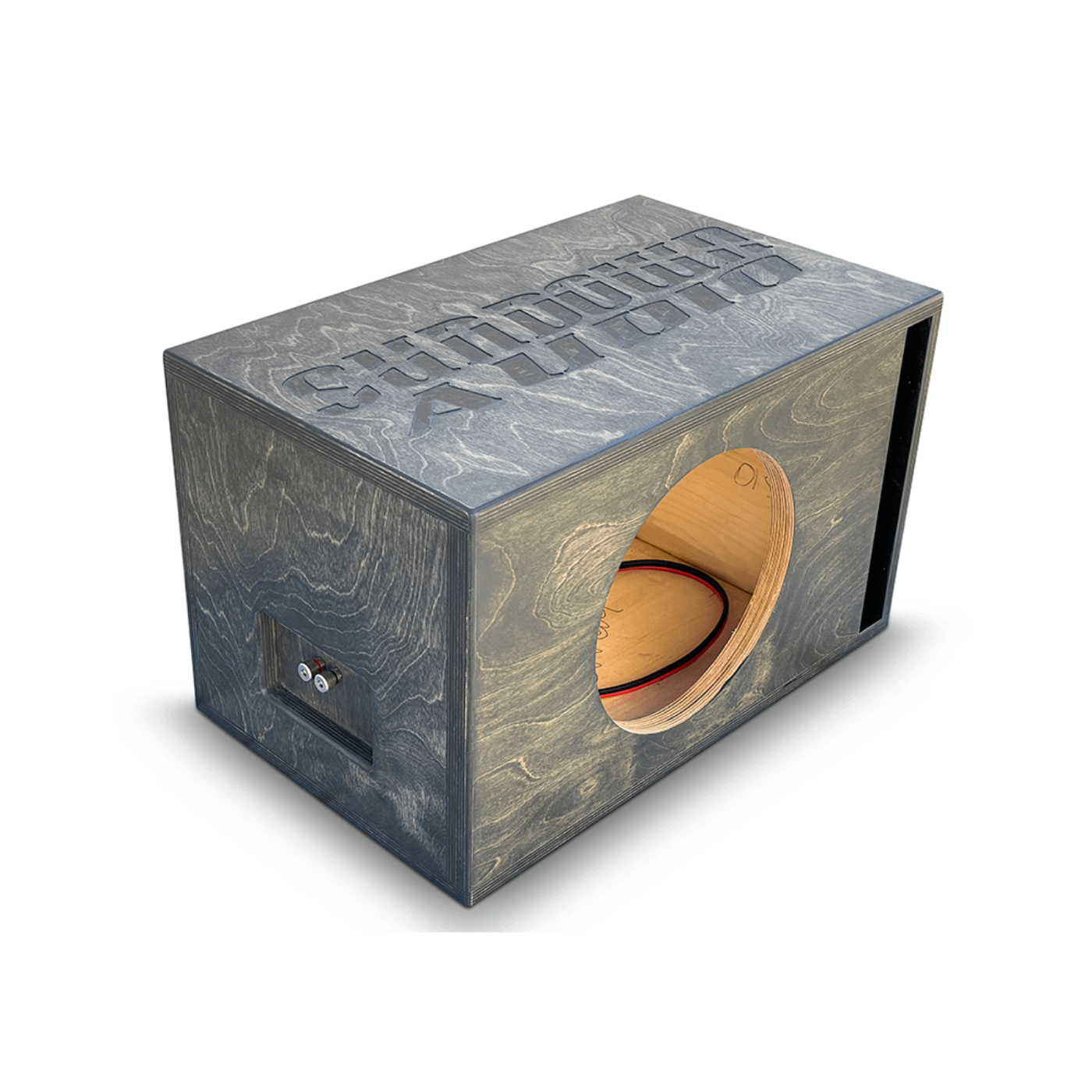

Custom built enclosure specifically for the Sundown Audio Uv1 15" subwoofer
Specifications
| Brand |
Not specified |
| Net Internal Volume |
3.75 cubic feet |
| Tuning Frequency |
32 Hz |
| Port Area |
54.25 sq in |
| Port Dimensions |
15.5" (L) x 3.5" (H) |
| Subwoofer Cutout Diameter |
14.1" |
| Enclosure Material |
3/4" (18mm) Birch Plywood |
| Baffle Construction |
Solid 1" (24mm) Birch Ply for ultimate strength |
| Plywood Construction |
13-ply Birch Veneer (1" Baffle: 17-ply) |
| Finish |
Gray Stained |
| Terminal Type |
Pre-wired Metal Binding Post with 10ga OFC Wire |
Dimensions/Weight:
- 17” tall
- 31.75” wide
- 20” deep
What Our Experts Think
-
Custom-Tuned for the Uv1: Precisely engineered for the Sundown 15" Uv1 subwoofer to deliver aggressive, low-end performance.
-
High-Output Port Design: Optimized porting enhances bass depth and SPL, perfect for ground-shaking sound.
-
Robust Construction: Built with thick, durable MDF and reinforced bracing to handle the power and pressure of a 15" sub.
-
Matched Internal Volume: Designed with ideal airspace to support Uv1's excursion and power efficiency.
-
Easy Installation: Pre-installed terminal and wiring streamline setup—just drop in the sub and go.
Q&A
Q: What subwoofer is this enclosure made for?
A: Specifically designed for the Sundown Audio 15" Uv1 subwoofer.
Q: Is this a ported or sealed box?
A: Ported enclosure, engineered for loud, deep bass output.
Q: What is the tuning frequency?
A: Tuned to around 32Hz for extended low-end response.
Q: What material is used in the build?
A: Constructed from high-quality MDF for strength and acoustic performance.
Q: Does this come with wiring or terminals?
A: No wiring included; terminal cup is pre-installed.
Q: Will it fit in most trunks or SUVs?
A: Fits larger trunks and most SUVs—check the external dimensions to confirm.
Q: Why choose this enclosure?
A: Purpose-built for the Uv1 15", it delivers optimal airflow, tuning, and SPL output.
Maintenance Tips
-
Clean ports & surface: Wipe with a dry, soft cloth to prevent dust buildup that affects airflow.
-
Moisture protection: Keep in a dry environment to prevent MDF swelling or carpet damage.
-
Secure wiring: Check speaker terminals monthly for tightness and oxidation.
-
Use correct power: Pair with an amp matching the sub’s RMS rating (~1000–1500W) to avoid overload.
-
Mount securely: Anchor the box in your vehicle to prevent vibrations and physical damage.
