Sundown Audio Single 18" Uv2 Ported Enclosure - AABE-SA-Uv2-S18-SUPB-RD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for a Sundown Audio Uv2 18" subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium ¾” Russian Baltic Birch we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

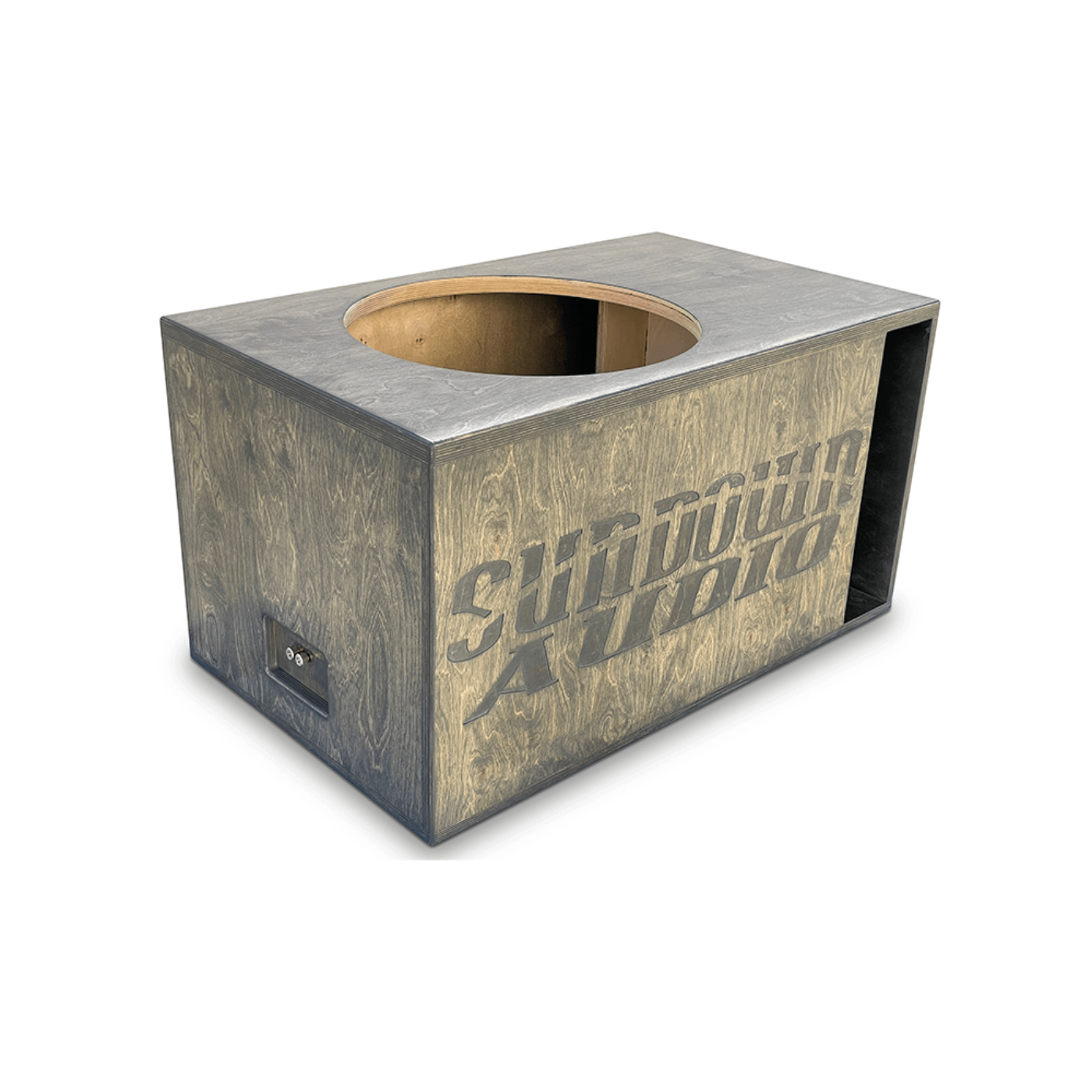

Custom built enclosure specifically for the Sundown Audio Uv2 18" subwoofer.
Specifications
| Net Internal Volume |
5.75 cubic feet |
| Tuning Frequency |
31 Hz |
| Port Area |
84.09375 sq in |
| Port Dimensions |
17.25” (L) x 4.875” (H) |
| Subwoofer Cut-Out Diameter |
16.9 inches |
| Material |
3/4" (18mm) Birch Plywood |
| Baffle |
Solid 1” (24mm) Baffle for Ultimate Strength |
| Construction |
13-ply Birch Veneer (17-ply for 1” Baffle) |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 19" tall
- 38.125" wide
- 22″ deep
What Our Experts Think
-
Optimized for the Uv2 18": Custom-tuned to deliver maximum output and clarity from the Sundown Uv2 18" subwoofer.
-
Extreme Low-End Performance: Ported design produces deep, ground-shaking bass with precision and minimal distortion.
-
Built for Brutal Power: Heavy-duty MDF construction and internal bracing withstand high SPL and extreme excursion.
-
High-Efficiency Porting: Flared port design enhances airflow, reduces turbulence, and supports clean, powerful bass.
-
Ready for Competition: Engineered to meet the demands of high-wattage, high-pressure systems.
Q&A
Q: What is the Sundown Audio Single 18" Uv2 Ported Enclosure?
A: A custom-built ported enclosure designed for the Sundown Audio 18" Uv2 subwoofer, engineered for extreme bass output and deep low-frequency performance.
Q: Is this enclosure meant for daily use or SPL?
A: Tuned for high-output daily use with SPL potential, it delivers clean, powerful, and extended bass response.
Q: What is it made of?
A: Constructed from ¾" MDF with a reinforced double baffle and precision port design to maximize strength, airflow, and sound accuracy.
Q: Can it fit other 18" subwoofers?
A: No, it’s specifically designed for the Sundown 18" Uv2. Other subs may not fit or perform as intended.
Q: Does it come assembled?
A: Yes, it’s fully assembled—just install your Uv2 subwoofer and wire it up.
Maintenance Tips
-
Regular Cleaning: Wipe the enclosure with a soft, dry cloth to prevent dust accumulation on the surface and ports.
-
Inspect for Damage: Periodically check the subwoofer and port for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofer's recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofer.
