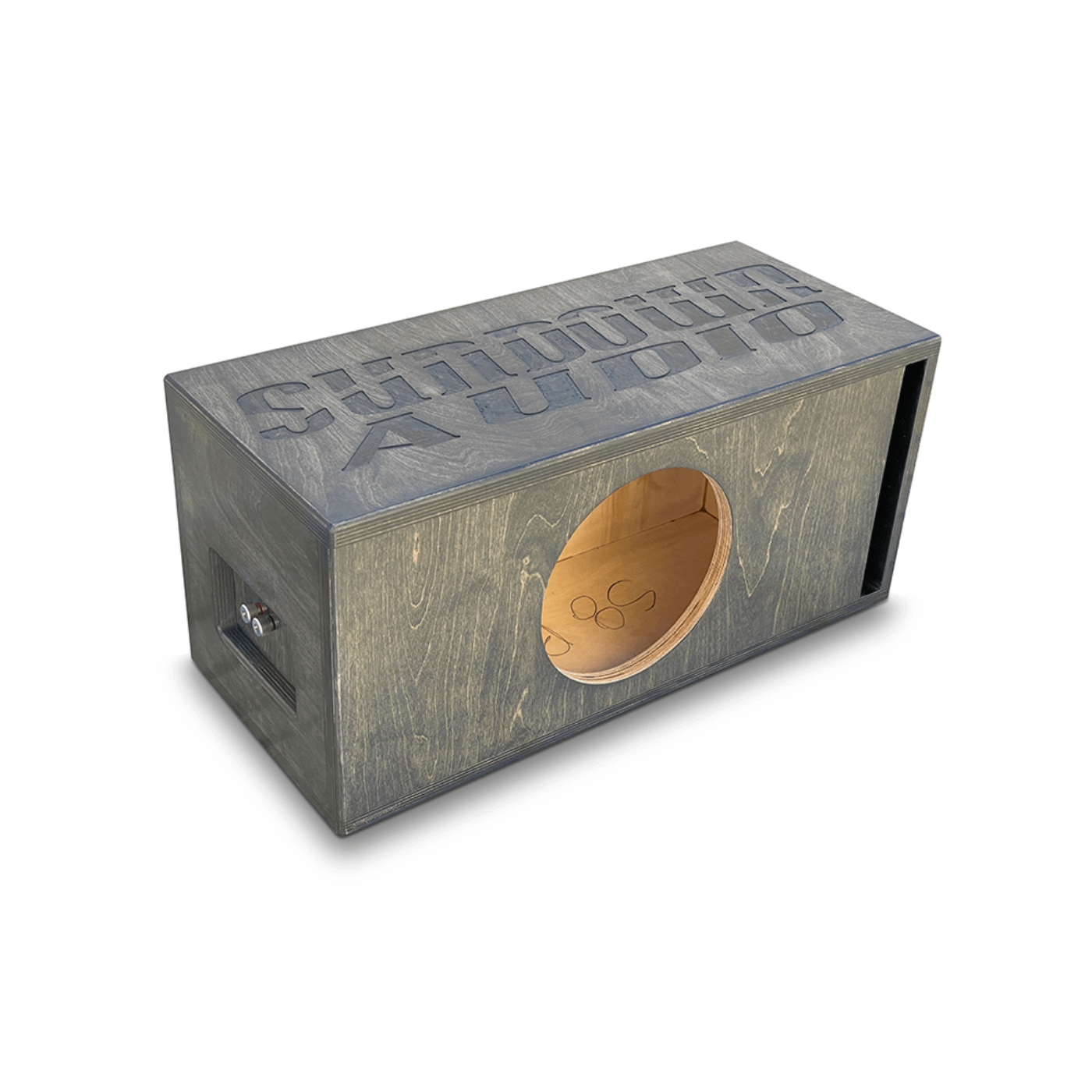

Sundown Audio Single 8" Xv2 Ported Enclosure - AABE-SA-Xv2-S8-RD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio Xv2 8” subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer a well build, well performing and good looking enclosure at an affordable price. Using premium ¾” Baltic Birch all around with a 1” baffle for added baffle strength, we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for the Sundown Audio Xv2 8"" subwoofer.
Specifications
| Net Internal Volume |
1.0 cubic feet |
| Tuning Frequency |
34 Hz |
| Port Area |
13.5 sq in |
| Port Dimensions |
10” (L) x 1.35” (H) |
| Subwoofer Cut-Out Diameter |
7.36 inches |
| Material |
3/4" (18mm) Birch Plywood |
| Baffle |
Solid 1” (24mm) Baffle for Ultimate Strength |
| Construction |
13-ply Birch Veneer (17-ply for 1” Baffle) |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Pos |
Dimensions/Weight
- 11.5” tall
- 25.0625” wide
- 12.0” deep
What Our Experts Think
-
Built for the Xv2 8": Purpose-tuned to match the performance characteristics of the Sundown Xv2 8" subwoofer.
-
Impressive Bass in a Small Package: Ported design delivers punchy, deep lows with surprising output for an 8" setup.
-
Compact and Versatile: Great for small vehicles, under-seat installs, or tight spaces where performance still matters.
-
Solid MDF Build: Durable enclosure with internal bracing to ensure structural integrity and clean output.
-
Flared Port Design: Maximizes airflow, reduces turbulence, and enhances bass clarity at all volume levels.
Q&A
Q: What is the Sundown Audio Single 8" Xv2 Ported Enclosure?
A: A high-performance ported enclosure built for the Sundown Audio 8" Xv2 subwoofer, delivering deep, punchy bass in a compact footprint.
Q: Is this enclosure made for daily use or SPL?
A: Designed for daily use, it provides clean, powerful bass with excellent low-end response in tight space applications.
Q: What materials are used in construction?
A: Constructed from ¾" MDF with reinforced bracing and precision port tuning for strength, airflow, and acoustic performance.
Q: Can it fit other 8" subwoofers?
A: No, it’s custom-built for the 8" Sundown Xv2. Other subwoofers may not fit or perform optimally.
Q: Is the enclosure pre-assembled?
A: Yes, it ships fully assembled—just install your Xv2 subwoofer and wire it up.
Maintenance Tips
-
Regular Cleaning: Wipe the enclosure with a soft, dry cloth to prevent dust accumulation on the surface and ports.
-
Inspect for Damage: Periodically check the subwoofer and port for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofer's recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofer.
