Sundown Audio Single 10" NSv5 Ported Enclosure - AABE-SA-NSv5-S10-HD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio NSv5 10" subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

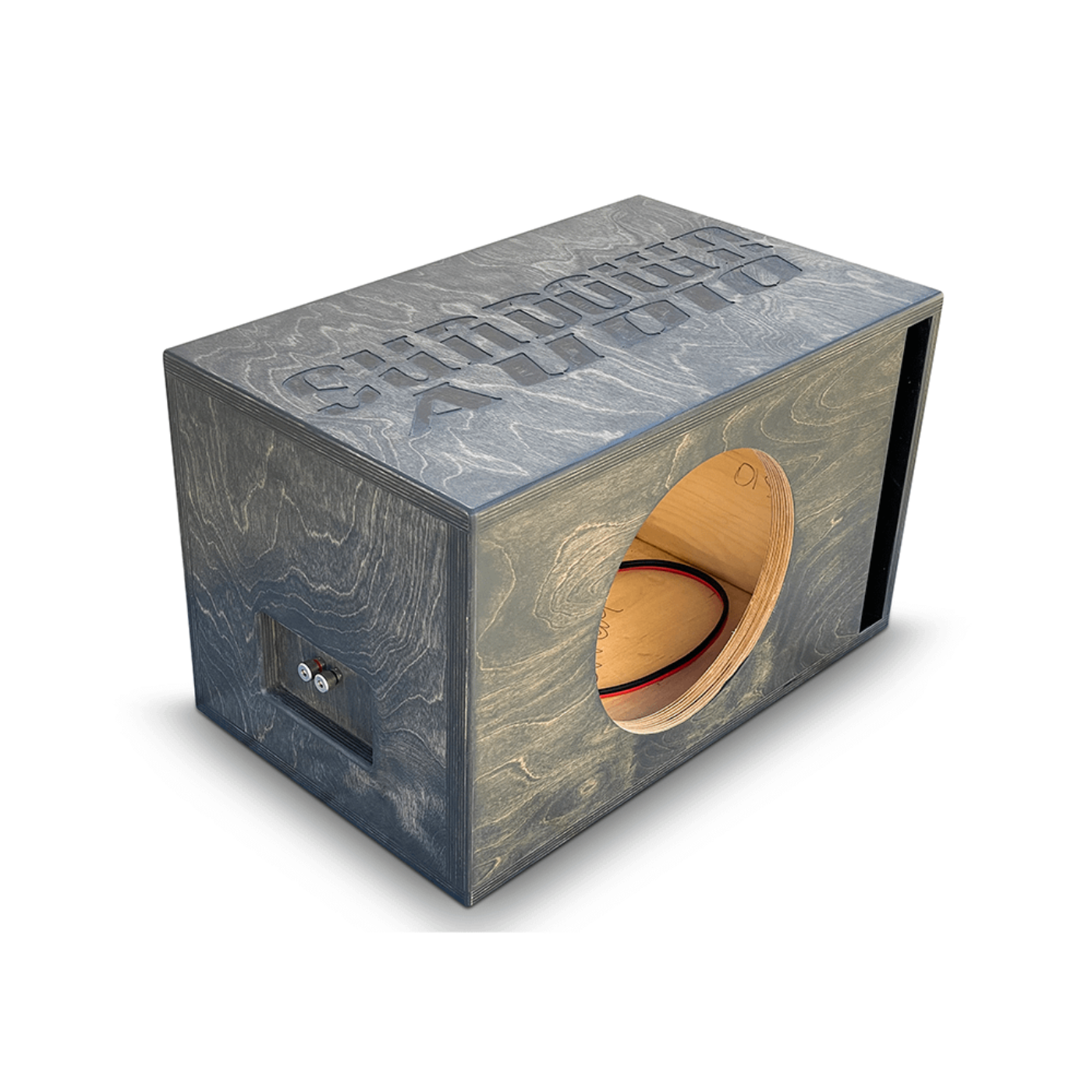

Custom built enclosure specifically for the Sundown Audio NSv5 10" subwoofer.
Specifications
| Net Internal Volume |
1.5 cubic feet |
| Tuning Frequency |
32 Hz |
| Port Area |
21.96 sq in |
| Port Dimensions |
12” (L) x 1.83” (H) |
| Subwoofer Cut-Out Diameter |
10.01 inches |
| Material |
1" Birch Plywood |
| Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 14" tall
- 26.5" wide
- 15.25″ deep
What Our Experts Think
-
Custom-Tuned for NSv5 10": Precisely engineered to complement the Sundown NSv5 10" subwoofer for optimal performance.
-
Punchy, Clean Bass: Ported design delivers deep, controlled lows with minimal distortion and excellent clarity.
-
Durable Build: Constructed with high-quality MDF and internal bracing to handle intense power demands.
-
Efficient Port Design: Flared port reduces turbulence, boosting bass output and efficiency.
-
High Power Handling: Built to manage the high excursion and wattage requirements of the NSv5 10" subwoofer.
Q&A
Q: What is the Sundown Audio Single 10" NSv5 Ported Enclosure?
A: A custom-built ported enclosure designed for the Sundown Audio 10" NSv5 subwoofer, offering deep bass and high output with optimized airflow.
Q: Is this enclosure designed for daily use or SPL?
A: Tuned for daily use with excellent low-frequency extension, it delivers a balance of high output and musical clarity, suitable for both music and SPL enthusiasts.
Q: What materials are used in the construction?
A: Made from durable ¾" MDF with a double baffle for added strength and longevity, featuring a high-efficiency port for maximum airflow and sound performance.
Q: Will this enclosure work with other 10" subwoofers?
A: No, this enclosure is designed specifically for the Sundown 10" NSv5 subwoofer. Other 10" subs may not fit properly or perform as intended.
Q: Does it come pre-assembled?
A: Yes, the enclosure ships fully assembled—just install your NSv5 subwoofer and wire it up.
Maintenance Tips
-
Regular Cleaning: Dust the enclosure with a microfiber cloth to keep it free from dirt and debris.
-
Inspect for Wear: Check the subwoofer cone and port for any damage or signs of wear, especially after heavy use.
-
Amplifier Matching: Make sure the amplifier is properly matched to the subwoofer's power rating to prevent damage.
-
Ventilation: Ensure the enclosure is in a well-ventilated area to allow airflow and prevent overheating.
-
Secure Mounting: Secure the enclosure to prevent excessive movement or vibrations that could affect performance.
