Sundown Audio Single 10" Uv1 Ported Enclosure - AABE-SA-Uv1-S10-RD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for a Sundown Audio Uv1 10" subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium ¾” Russian Baltic Birch we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.

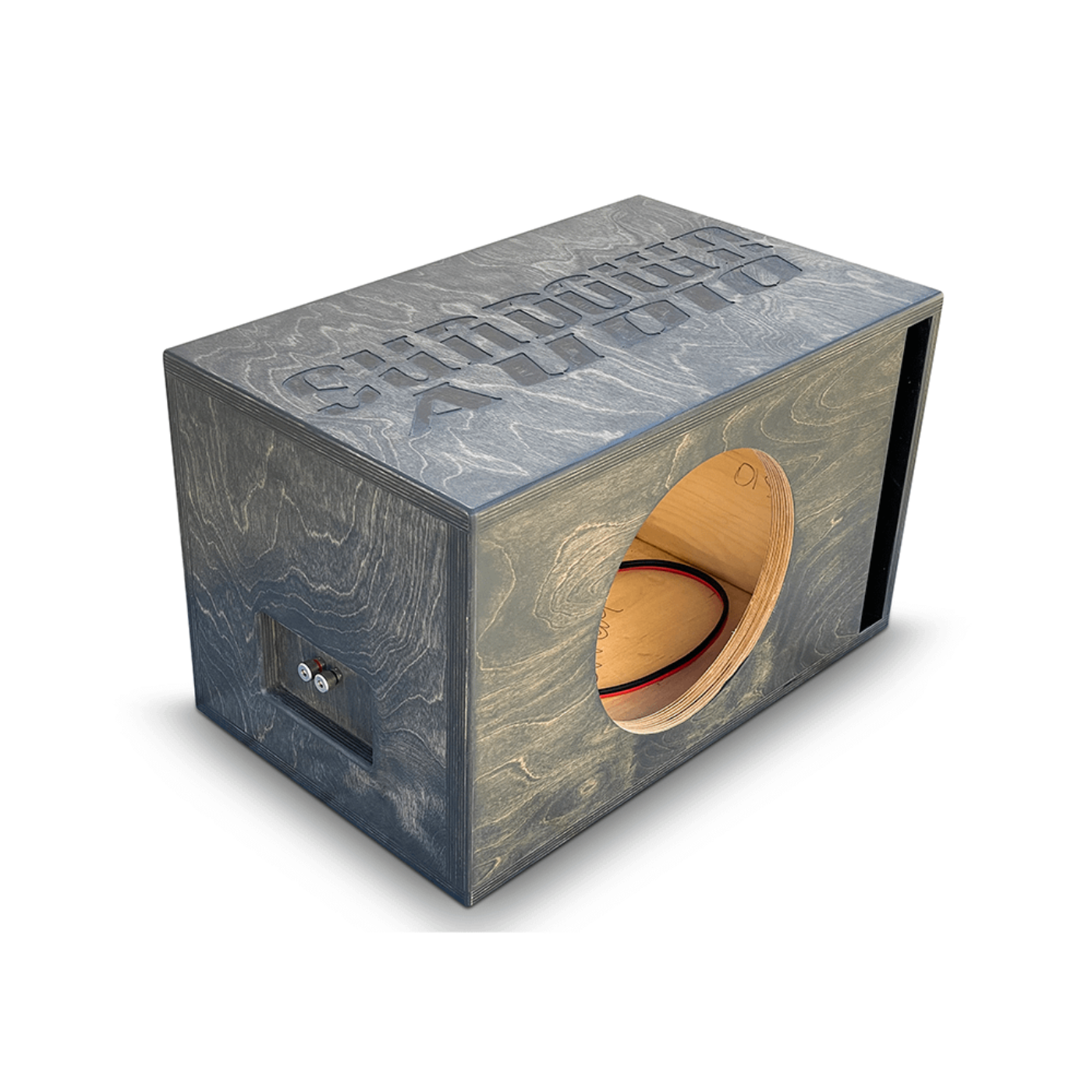

Custom built enclosure specifically for the Sundown Audio Uv1 10" subwoofer.
Specifications
| Net Internal Volume |
1.0 cubic feet |
| Tuning Frequency |
34 Hz |
| Port Area |
14.375 sq in |
| Port Dimensions |
11.5” (Length) x 1.25” (Height) |
| Subwoofer Cut-Out Diameter |
9.17 inches |
| Material |
3/4" (18mm) Birch Plywood |
| Baffle |
Solid 1” (24mm) Baffle for Ultimate Strength |
| Construction |
13-ply Birch Veneer (1” Baffle with 17-ply Birch) |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post with 10ga OFC Wire |
Dimensions/Weight
- 13” tall
- 13” wide
- 21.75” deep
What Our Experts Think
-
Tuned for Peak Uv1 10" Output: Designed to maximize performance, SPL, and low-frequency extension from the Sundown Uv1 10" sub.
-
Compact, Hard-Hitting Bass: Ported design delivers tight, deep, and accurate lows without taking up much space.
-
Built for Daily Power: Constructed from heavy-duty MDF with bracing to withstand high excursion and wattage.
-
Optimized Flared Port: Smooth airflow reduces noise and distortion while improving bass efficiency.
-
Clean, Loud, and Reliable: Perfect for daily drivers needing real bass in a tight footprint.
Q&A
Q: What is the Sundown Audio Single 10" Uv1 Ported Enclosure?
A: A precision-designed ported enclosure built specifically for the Sundown Audio 10" Uv1 subwoofer, delivering deep, tight bass with high output in a compact size.
Q: Is this enclosure optimized for daily use or SPL?
A: Tuned for powerful daily use, it offers responsive low frequencies with excellent clarity and control.
Q: What materials are used in construction?
A: Made from durable ¾" MDF with internal bracing and precision port tuning for enhanced strength, airflow, and sound quality.
Q: Will it fit other 10" subwoofers?
A: No, it’s designed exclusively for the Sundown Audio 10" Uv1. Other subs may not fit or perform correctly.
Q: Does it come assembled?
A: Yes, it arrives fully assembled—just install your Uv1 subwoofer and wire it up.
Maintenance Tips
-
Regular Cleaning: Use a soft, dry cloth to gently remove dust from the enclosure's surface and ports.
-
Inspect for Damage: Periodically examine the subwoofer and port for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofer's recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofer.
