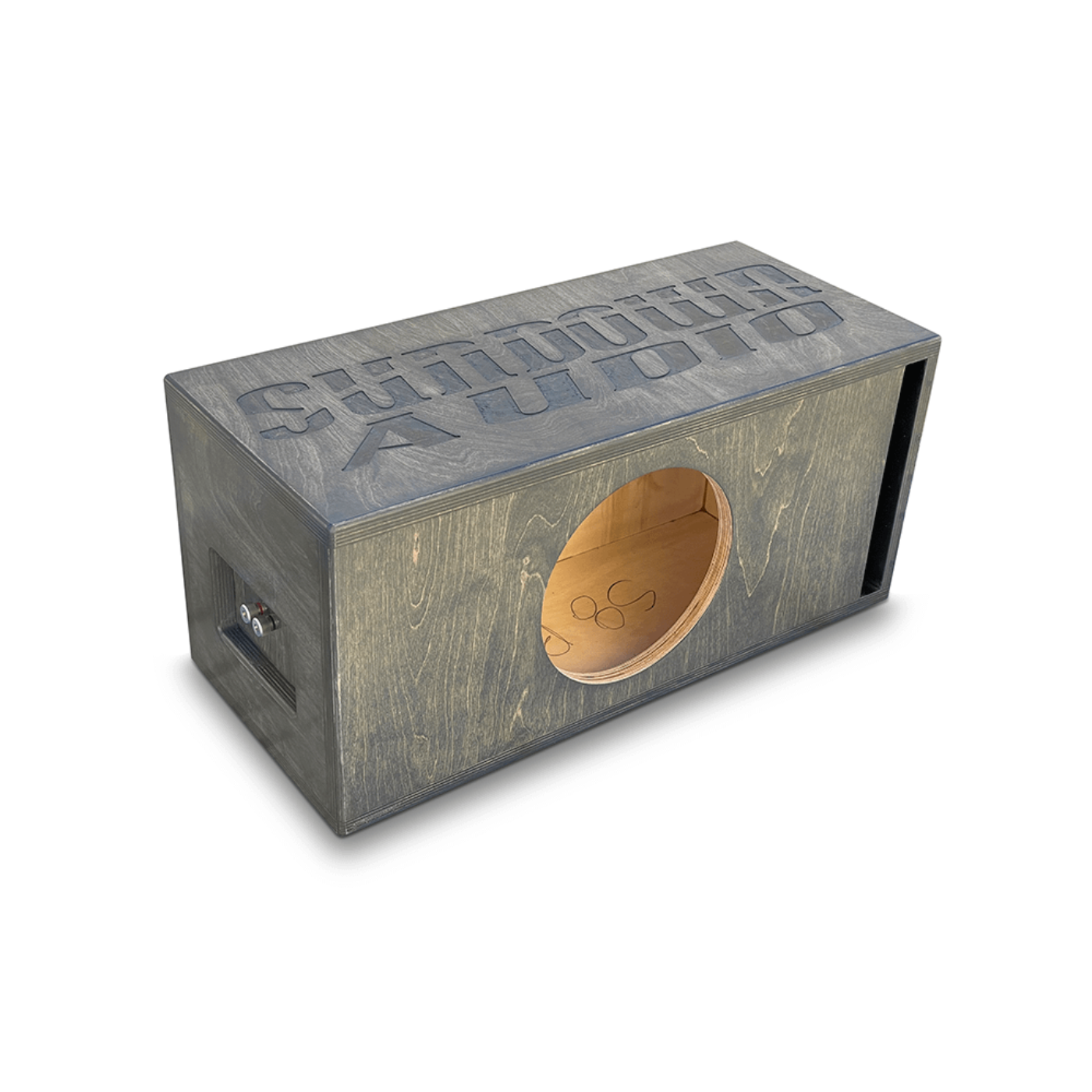

Sundown Audio Single 8" Xv3 Ported Enclosure - AABE-SA-Xv3-S8-RD
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio Xv3 8” subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer a well build, well performing and good looking enclosure at an affordable price. Using premium ¾” Baltic Birch all around with a 1” baffle for added baffle strength, we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 18mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle subwoofer setups up to 2000W RMS (dual enclosures – 4000W RMS). Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for the Sundown Audio Xv3 8"" subwoofer.
Specifications
| Net Internal Volume |
1.0 cubic feet |
| Tuning Frequency |
34 Hz |
| Port Area |
13.5 sq in |
| Port Dimensions |
10” (L) x 1.35” (H) |
| Subwoofer Cut-Out Diameter |
7.36 inches |
| Material |
3/4" (18mm) Birch Plywood |
| Baffle |
Solid 1” (24mm) Baffle for Ultimate Strength |
| Construction |
13-ply Birch Veneer (17-ply for 1” Baffle) |
| Finish |
Gray Stained |
| Terminal |
Pre-wired Metal Binding Post |
Dimensions/Weight
- 11.5” tall
- 25.0625” wide
- 12.0” deep
What Our Experts Think
-
Tuned for the Xv3 8": Specifically designed to extract peak performance from the Sundown Xv3 8" subwoofer.
-
Surprisingly Deep Bass: Ported design delivers tight, clean, and impactful lows from a compact 8" setup.
-
Space-Saving Power: Ideal for limited-space applications without sacrificing sound quality or output.
-
Durable Construction: Built from high-quality MDF with precision bracing to eliminate flex and maintain performance.
-
Flared Port Efficiency: Smooth porting reduces turbulence and enhances airflow for louder, cleaner bass.
Q&A
Q: What is the Sundown Audio Single 8" Xv3 Ported Enclosure?
A: A compact, high-output ported enclosure designed specifically for the Sundown Audio 8" Xv3 subwoofer, delivering tight, deep bass with exceptional efficiency.
Q: Is this enclosure tuned for daily use or SPL?
A: Tuned for powerful daily use, it provides clean, responsive low-end perfect for tight bass in smaller setups.
Q: What materials is it made from?
A: Built from durable ¾" MDF with a reinforced design and precision port tuning for optimal strength, airflow, and sound quality.
Q: Will it work with other 8" subwoofers?
A: No, this enclosure is custom-built for the Sundown Audio 8" Xv3. Other subwoofers may not fit or perform properly.
Q: Is the enclosure pre-assembled?
A: Yes, it comes fully assembled—just drop in your Xv3 sub and wire it up.
Maintenance Tips
-
Regular Cleaning: Wipe the enclosure with a soft, dry cloth to prevent dust accumulation on the surface and ports.
-
Inspect for Damage: Periodically check the subwoofer and port for any signs of wear, such as cracks or tears, especially after extended use.
-
Amplifier Matching: Ensure your amplifier's power output aligns with the subwoofer's recommended specifications to prevent overdriving.
-
Maintain Ventilation: Place the enclosure in a well-ventilated area to allow proper airflow and prevent overheating during prolonged use.
-
Secure Installation: Mount the enclosure securely to minimize vibrations and avoid potential damage to the subwoofer.
