Sundown Audio Single 10" Zv4 Ported Enclosure - AABE-SA-Zv4-S10-HD

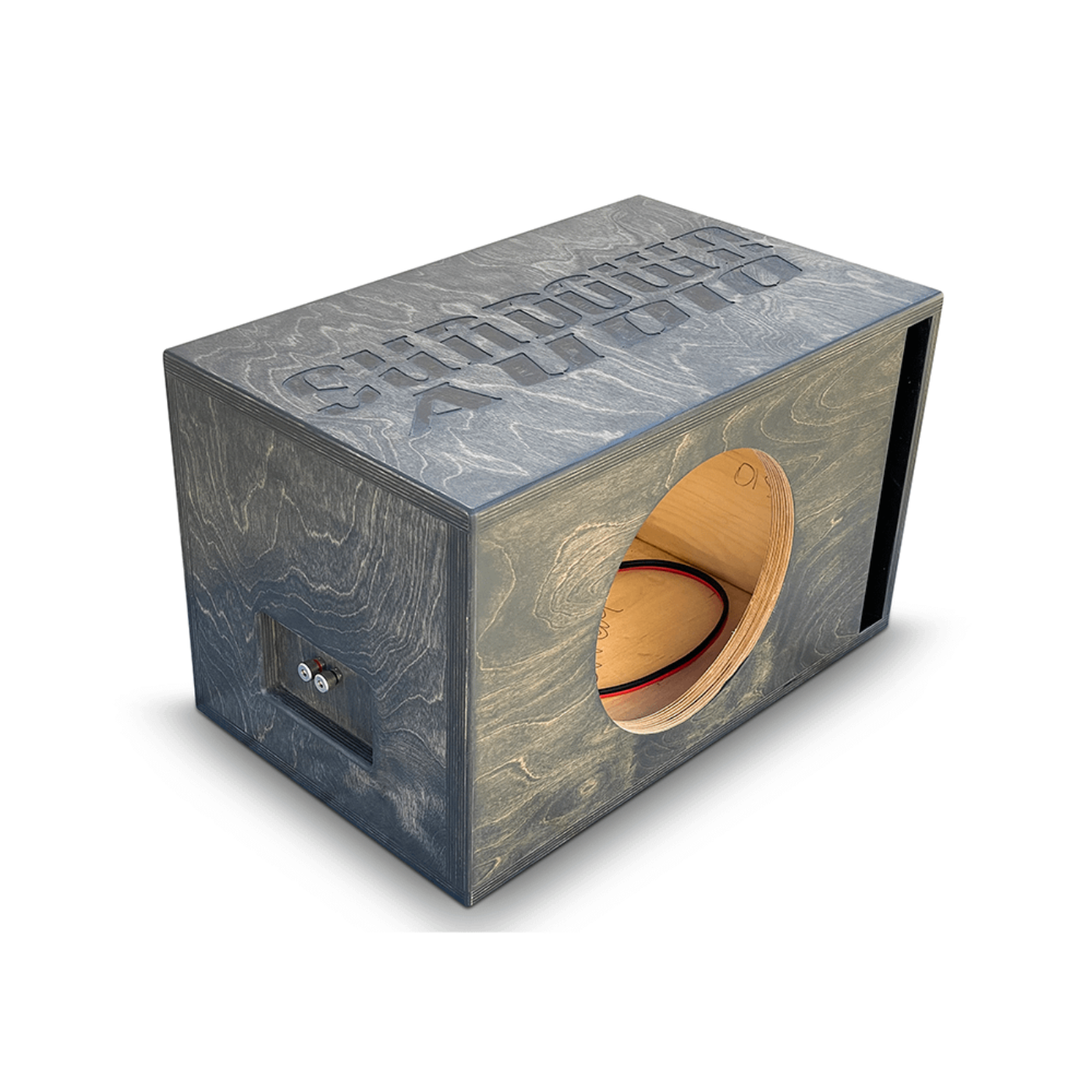

Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio Zv4 10" subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA.
Custom built enclosure specifically for the Sundown Audio Zv4 10" subwoofer.
Specifications
| Brand |
Not specified |
| Net Internal Volume |
1.5 cubic feet |
| Tuning Frequency |
32 Hz |
| Port Area |
21.96 sq in |
| Port Dimensions |
12" (L) x 1.83" (H) |
| Subwoofer Cutout Diameter |
10.01" |
| Enclosure Material |
1" Birch Plywood |
| Plywood Construction |
17-ply Birch Veneer |
| Finish |
Gray Stained |
| Terminal Type |
Pre-wired Metal Binding Post |
Dimensions/Weight:
- 14" tall
- 26.5" wide
- 15.25″ deep
What Our Experts Think
-
Built for Power: Engineered specifically for the Sundown Zv4 10" subwoofer, this enclosure handles high RMS power and extreme output levels with ease.
-
Precision Port Tuning: Optimized ported design maximizes low-frequency response and airflow, reducing distortion at high volume.
-
Heavy-Duty Construction: Crafted from high-grade MDF with bracing for durability and resonance control under pressure.
-
Performance Fit: Internal airspace and tuning are matched perfectly to Zv4 sub specs for peak performance.
-
Installation Ready: Terminal cup included, pre-wired for fast drop-in setup.
Q&A
Q: What subwoofers is this enclosure designed for?
A: Specifically engineered for the Sundown Audio 10" Zv4 subwoofer.
Q: Is this a ported or sealed enclosure?
A: Ported enclosure, tuned for deep, powerful bass.
Q: What material is the box made from?
A: Precision-crafted from high-grade MDF for durability and sound quality.
Q: What tuning frequency does the enclosure have?
A: Tuned to ~32Hz for optimal low-end performance.
Q: Is this enclosure pre-wired?
A: No, wiring is not included.
Q: Will it fit in most vehicles?
A: Compact design fits many trunks and SUV cargo areas—check dimensions before purchase.
Q: Why choose this enclosure?
A: Custom fit for maximum output from Zv4 10", pro-level port design, and superior build quality.
Maintenance Tips
-
Keep dry & clean: Wipe with a soft cloth regularly; avoid moisture to protect the MDF and carpet.
-
Secure connections: Check terminal wiring monthly to ensure tight, corrosion-free connections.
-
Avoid overpowering: Use an amp within rated RMS (1500W) to prevent subwoofer or box damage.
-
Ventilation matters: Ensure the enclosure gets airflow to prevent overheating.
-
Transport carefully: Secure during transit to avoid cracks or joint separation.
