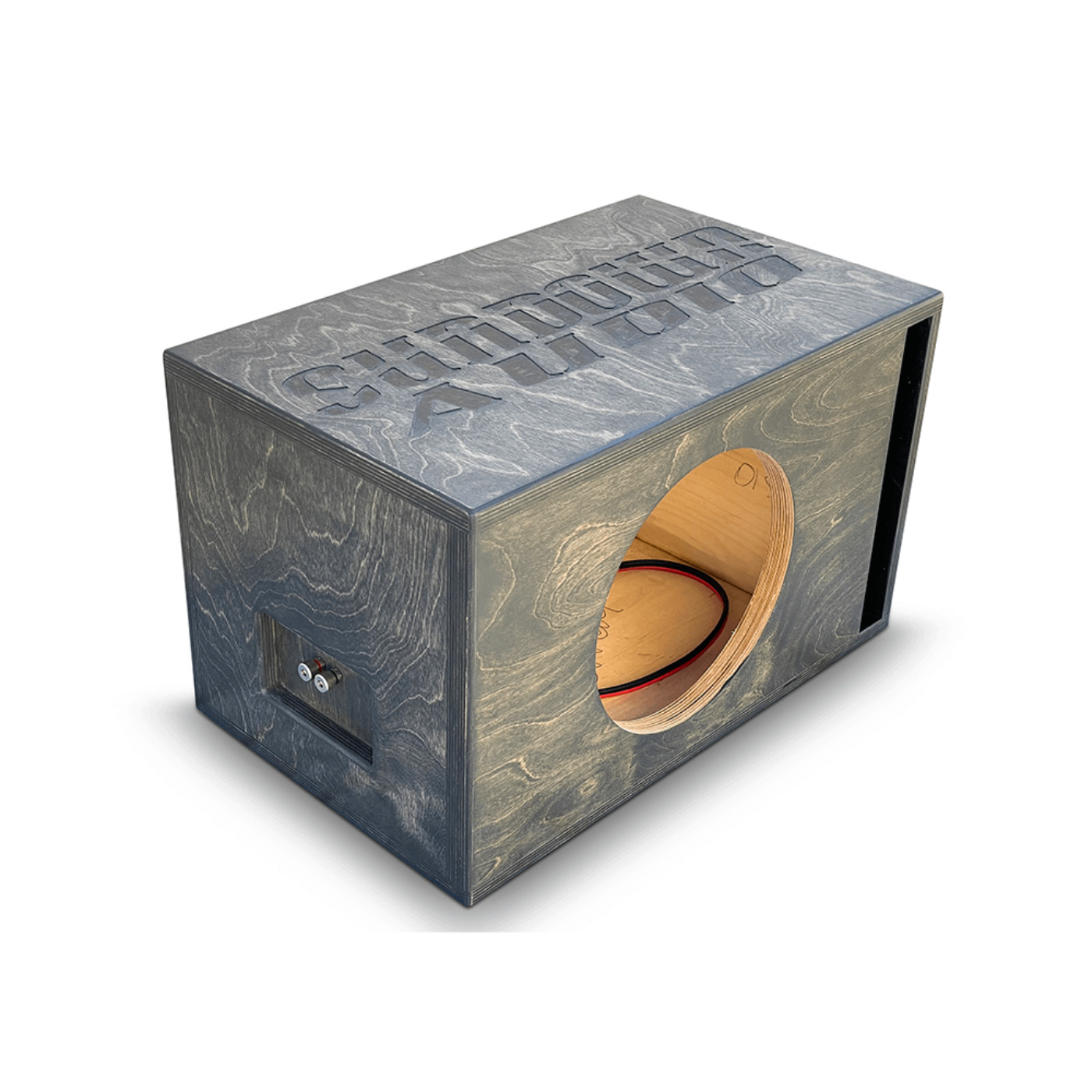

Sundown Audio Single 10" Zv6 Ported Enclosure - AABE-SA-Zv6-S10-HD
Custom built enclosure specifically for the Sundown Audio Zv6 10" subwoofer
Lead time is 2-3 weeks, no refunds once enclosures have been cut out! This is a custom made box specifically for the Sundown Audio Zv6 10" subwoofer. At Basshead Supply the goal with the “branded series” enclosures is to offer subwoofer specific enclosures that are well built, well performing and good looking enclosures at an affordable price. Using premium 1” Baltic Birch all around we are able to achieve a very strong and light enclosure. Using our refined assembly process produces an enclosure with NO visible screw holes anywhere on the enclosure. The entire enclosure is glued together with Titebond III and coupled with our 1” baffle and an additional 24mm baffle brace (on the dual subwoofer models) the enclosure is strong enough to handle high power subwoofer setups. Finished off with our carbon gray stain and a polyurethane finish these enclosures have a unique look to set it apart from all the generic prefabs. Complete with a recessed Satin Nickel Brass binding posts and prewired with OFC 10g wire, you are ready to go the moment it arrives. These are also built with love, by hand right here in the UNITED STATES OF AMERICA..Â
Specifications
| Net Internal Volume |
1.5 cubic feet |
| Tuning Frequency |
32 Hz |
| Port Area |
21.96 square inches |
| Port Dimensions |
12" (L) x 1.83" (H) |
| Subwoofer Cut-Out Diameter |
10.01" |
| Construction Material |
1" Birch Ply (17-ply Birch Veneer) |
| Finish |
Gray stained finish |
Dimensions/Weight:
- 14" tall
- 26.5" wide
- 15.25″ deep
What Our Experts Think
-
Precision-Tuned Ported Design: Engineered specifically for the Zv6 10" subwoofer, this enclosure maximizes airflow and minimizes distortion, delivering deep, resonant bass.
-
High-Quality Construction: Built with durable materials to withstand the intense vibrations and power output of high-performance audio systems.
-
Optimized Airflow: The ported design enhances low-frequency response, ensuring that bass notes are both powerful and clear.
-
Compact Footprint: Despite its robust performance, the enclosure maintains a manageable size, making it suitable for various vehicle installations.
Q&A
Q: What is the Sundown Audio Single 10" Zv6 Ported Enclosure?
A heavy-duty subwoofer enclosure optimized for a single Sundown Audio 10" Zv6 subwoofer.
Q: Is the enclosure preloaded with a subwoofer?
No, subwoofer is sold separately.
Q: What type of bass can I expect?
Loud, low-frequency output with tight, controlled bass response.
Q: Can it be used in all vehicles?
Fits in most vehicles with adequate space—check dimensions before purchase.
Maintenance Tips
-
Keep Enclosure Clean: Wipe with a dry or slightly damp cloth to remove dust.
-
Inspect Port Area: Ensure the port is clear of debris to maintain airflow and bass response.
-
Check Subwoofer Mounting: Tighten screws periodically to prevent rattling or air leaks.
-
Avoid Moisture Exposure: Store and operate in a dry area to protect the MDF and internal components.
-
Protect from Impact: Avoid dropping or bumping the enclosure to maintain structural integrity.
-
Secure Wiring: Check speaker wires for secure, clean connections to prevent signal loss.
