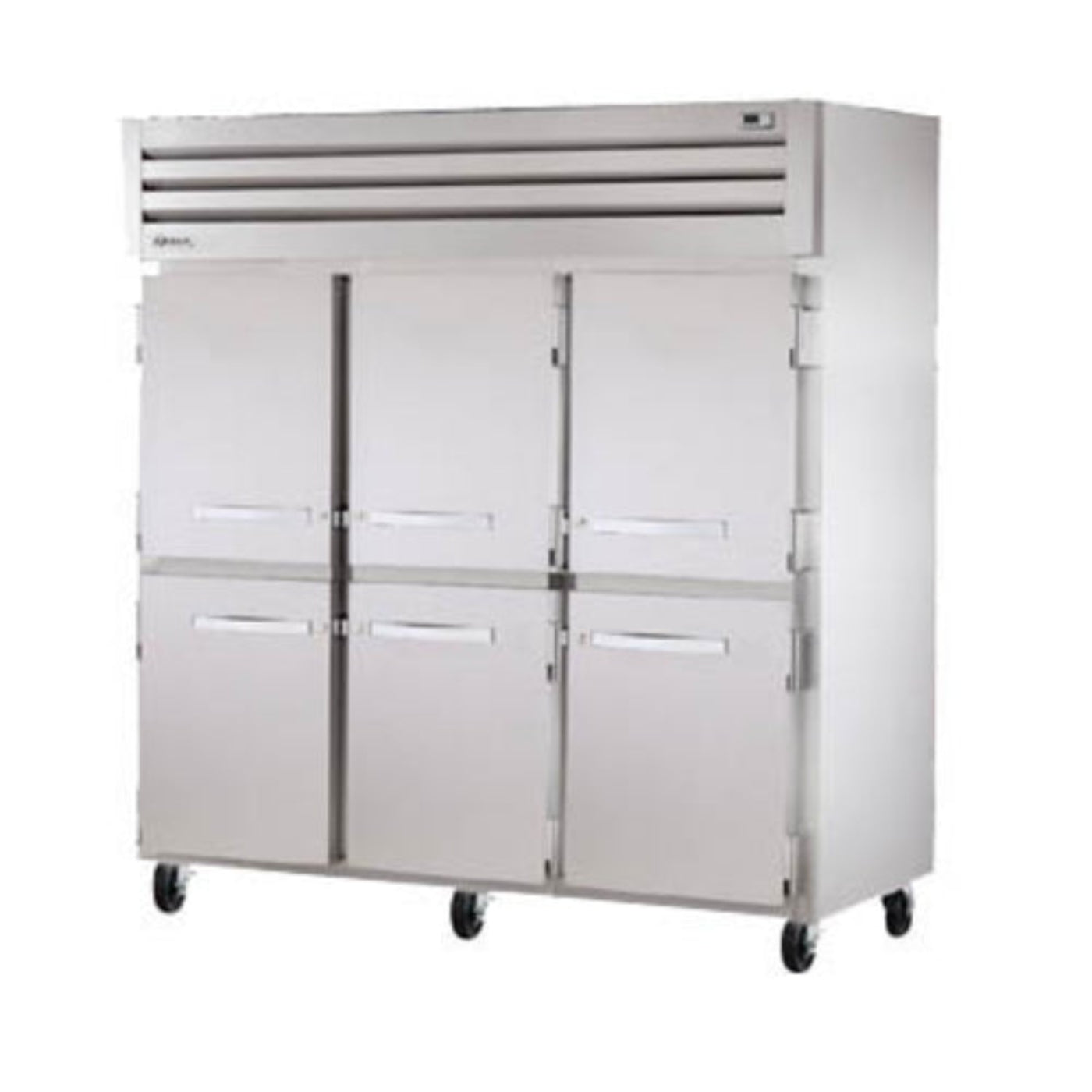

True Mfg. - General Foodservice STG3F-6HS SPEC SERIES Reach-In Refrigerators & Freezers
SPEC SERIES Freezer, reach-in, three-section, -10°F, (6) stainless steel half doors with locks, cam-lift hinges, digital temperature control, (9) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, self-contained top-mounted refrigeration, (2) 3/4 HP, 115v/60/1-ph, 13.8 amps, NEMA 5-20P, cULus, UL EPH Classified, Made in USA
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Brand Name |
SPEC SERIES® |
| Model Type |
Freezer, Reach-In, Three-Section |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Height |
77.75 in |
| Width |
77.75 in |
| Depth |
33.75 in |
| Shipping Weight |
885 lbs |
| Refrigeration |
Self-contained, top-mounted |
| Size |
3 Section |
| Compressor HP |
(2) 3/4 HP |
| Capacity |
54 - 85 cu. ft. |
| Door Type |
(3) Stainless steel doors with locks |
| Door Style |
Full Hinged |
| Thermometer |
Digital temperature control |
| Interior Configuration |
(9) Gray shelves |
| Interior Finish |
All aluminum |
| Mobility |
5" Castors |
| Power Requirement |
(2) 3/4 HP, 115v/60/1-ph, 13.8 amps, 9 ft. cord, NEMA 5-20P |
| Energy Efficiency |
R290 Hydrocarbon refrigerant |
What our Experts Think
-
Three-Section Design for Maximum Storage
Features 3 solid doors, providing separate access to refrigerator and freezer sections for improved organization and efficiency in busy kitchens.
-
Dual-Temperature Functionality
-
Freezer section maintains -10°F, perfect for storing frozen foods at optimal conditions.
-
Refrigerator sections operate between 34°F to 38°F, ensuring perishable items are kept at the ideal temperature for safety and freshness.
-
Commercial-Grade Durability
-
Constructed with stainless steel exterior and anodized aluminum interior, offering resistance to corrosion, ease of maintenance, and long-lasting durability.
-
Self-closing doors with magnetic gaskets ensure secure seals, reducing energy loss and preserving internal temperatures.
-
Energy Efficient
Features R290 hydrocarbon refrigerant and high-density foam insulation, making it an environmentally friendly option while providing energy-efficient performance.
-
Adjustable Shelving for Flexibility
Comes with adjustable wire shelves, allowing customization of storage space to accommodate various containers, trays, and pans.
Q&A
Q: What is the True STG3F-6HS SPEC SERIES Reach-In Refrigerator & Freezer?
A: It’s a three-section, dual-temperature reach-in unit with six half-height solid stainless steel doors, offering both refrigeration and freezing capabilities in one versatile storage solution.
Q: What temperature ranges does it maintain?
A: The refrigerator section holds temperatures between 33°F to 38°F (0.5°C to 3.3°C), while the freezer section operates between -10°F to 0°F (-23.3°C to -17.8°C), ideal for both perishable and frozen food storage.
Q: Is it energy efficient and built to last?
A: Yes, it is ENERGY STAR® certified with energy-efficient components and rugged stainless steel construction for durability, ensuring long-term performance and reduced energy consumption.
Q: Where is it best used?
A: Perfect for high-demand foodservice environments like large restaurants, hotels, catering services, and institutional kitchens that require versatile, dual-temperature storage with easy access.
Maintenance Tips
-
Condenser Coil Cleaning: Clean the condenser coil monthly to ensure optimal performance. Disconnect the unit, remove the grill assembly, and use a stiff bristle brush or compressed air to remove dust and dirt. Reassemble the unit and reconnect it.
-
Gasket Maintenance: Regularly inspect door gaskets for wear or mold. Clean them with mild detergent and warm water to maintain a proper seal, preventing cold air loss.
-
Stainless Steel Care: Use non-abrasive cloths and non-chloride cleaners to maintain the stainless steel exterior. This prevents corrosion and preserves the unit's appearance.
-
Temperature Monitoring: Regularly check the freezer's temperature to ensure it stays within the optimal range of -10°F.
-
Annual Professional Servicing: Schedule a yearly service to check refrigerant levels and overall functionality, ensuring long-term reliability.
