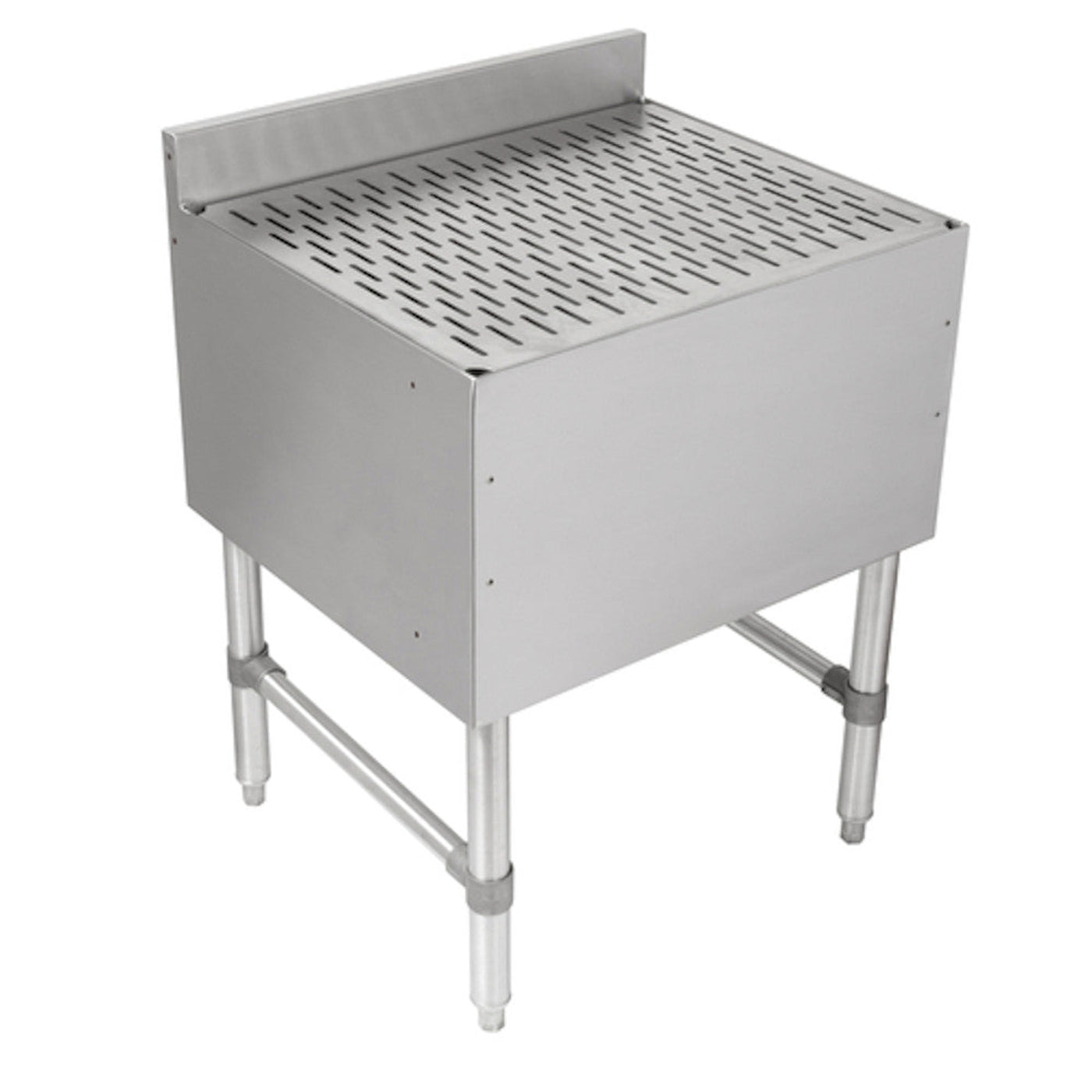

John Boos UBDB-1836 Slim Line 36" Underbar Drainboard

John Boos UBDB-1836 Slim Line 36" Underbar Drainboard

If you need a freestanding drainboard for your bar or food service operation, we recommend John Boos. This UBDB-1836 is a part of their slim-line series. This series offers a variety of NSF-certified equipment. The UBDB-1836 specifically is made of type 300, 18-gauge stainless steel. It has been polished with a satin finish. This material increases the overall longevity of the unit while keeping it easy to maintain.

The underbar drainboard features a creased deck for improved drainage. The perforated insert is removable for increased air circulation.

Features

• ALL 18 GAUGE STAINLESS STEEL CONSTRUCTION
• TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
• STANDARD PRE-DRILLED HOLES ON SIDES FOR ATTACHING ADJACENT UNITS TOGETHER
• SLIM LINE 18” DEEP FRONT TO BACK
• CREASED DECK FOR IMPROVED DRAINAGE
• REMOVABLE PERFORATED DRAINBOARD INSERT FOR INCREASED AIR CIRCULATION.
• STANDARD FRONT INSERTS FOR SPEED RAIL ATTACHMENT
• 1-1/4” STAINLESS STEEL FRONT TO BACK BRACING
• BOLT ON 1-5/8” STAINLESS STEEL LEGS FOR FAST INSTALLATION
• 1” ADJUSTABLE STAINLESS STEEL BULLET FEET
• 1-3/8” DRAIN
• 1” MPT 1-1/2” LONG DRAIN CONNECTION

Specifications

What our Experts Think

• Extended Surface Area – 36" width offers more drying space while maintaining a slim profile for tight bar setups.

• Built to Last – Constructed from 18-gauge stainless steel for excellent durability and corrosion resistance.

• Quick Drainage – Sloped drainboard design ensures efficient water runoff, keeping work areas clean and safe.

• Freestanding Flexibility – No installation required—easy to move and position as your layout evolves.

Q&A

Q: What is the John Boos UBDB-1836 underbar drainboard made of?
A: It's constructed from 18-gauge, type 300 stainless steel for long-lasting durability and resistance to corrosion.

Q: What are the dimensions of the UBDB-1836?
A: The unit measures 36" wide, 18" deep, and 32.5" high, ideal for tight or narrow bar areas.

Q: Is this drainboard NSF certified?
A: Yes, the UBDB-1836 is NSF certified, meeting commercial sanitation standards.

Q: Does it have adjustable feet?
A: Yes, it includes stainless steel bullet feet that adjust for stability on uneven floors.

Q: Is it a freestanding unit?
A: Yes, it's a freestanding design, perfect for modular underbar configurations.

Q: Where is the John Boos UBDB-1836 manufactured?
A: Proudly made in the USA by John Boos & Co., a leading name in commercial kitchen equipment since 1887.

Maintenance Tips

• Clean daily with warm water and mild detergent; rinse thoroughly.

• Dry completely after cleaning to avoid water spots and corrosion.

• Avoid abrasive scrubbers or harsh chemicals on stainless steel.

• Use stainless steel polish weekly to maintain a clean finish.

• Keep drain area clear to ensure proper drainage and hygiene.

• Check for secure footing and level the adjustable legs as needed.

• Do not exceed the recommended weight capacity to maintain structural integrity.
