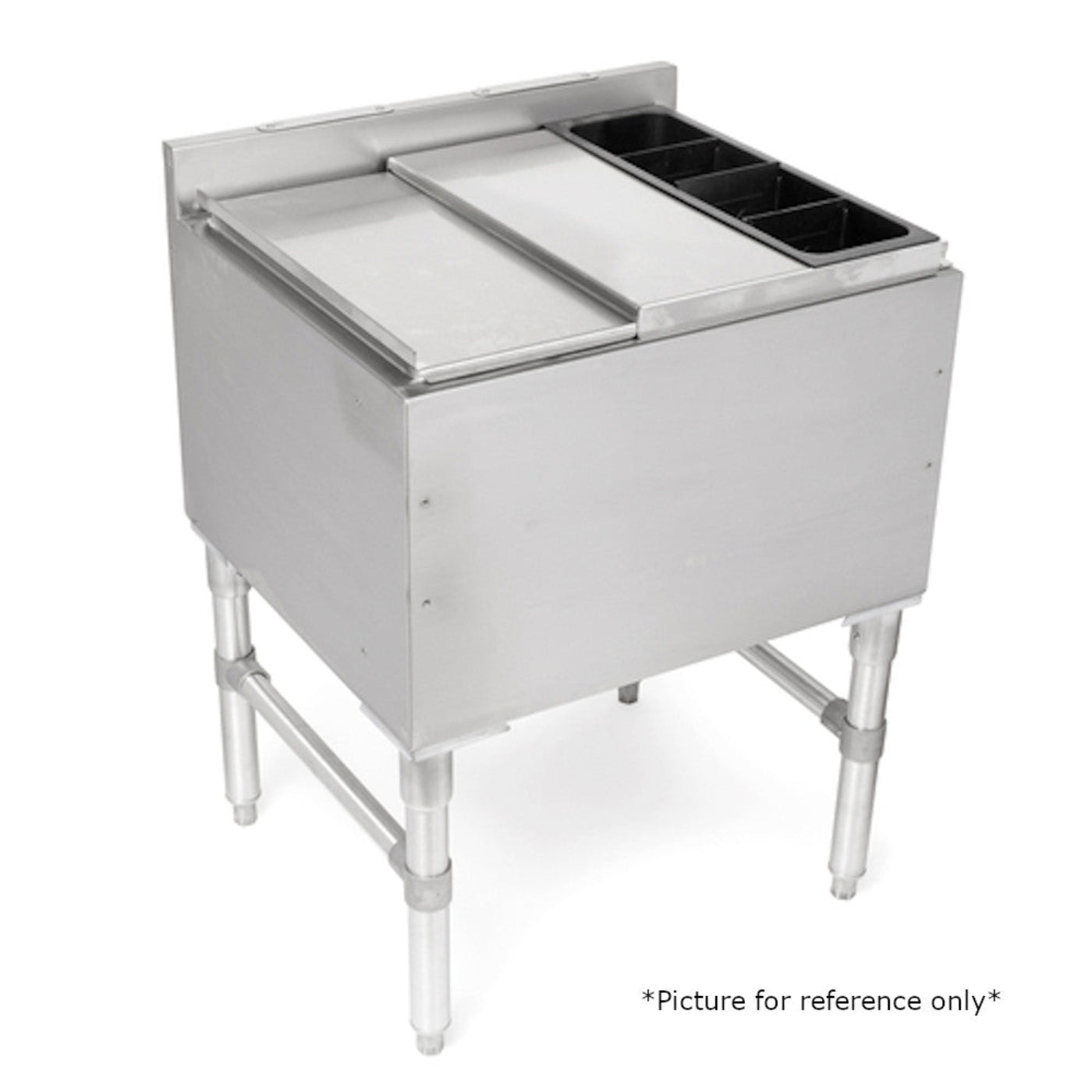

John Boos UBIB-1836-CP7 Slim Line Underbar Ice Bin with 7-Circuit Cold Plate
Entirely made of stainless steel, the John Boos UBIB-1836-CP7 underbar ice bin and cocktail unit is durable, attractive, and easy to maintain. Stainless steel improves the quality and endurance of your unit, increasing its longevity. It has a #4 polish satin finish, making your underbar station more visually appealing. It is simple to clean which improves sanitation. The UBIB-1836-CP7 is NSF certified.
Features
- ALL 18 GAUGE STAINLESS STEEL CONSTRUCTION
- TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
- SLIM LINE 18” DEEP FRONT TO BACK
- 28” W x 15” FRONT-TO-BACK x 13-1/2” DEEP FOAM INSULATED ICE BIN WITH DRAIN
- 7-CIRCUIT COLD PLATE
- INCLUDES 2-PIECE SLIDING LID
- STANDARD THREADED INSERTS ON SIDES FOR ATTACHING ADJACENT UNITS TOGETHER
- STANDARD FRONT INSERTS FOR SPEED RAIL ATTACHMENT
- ACCESS PLATES ON TOP OF BACKSPLASH FOR SODA GUN LINES
- STAINLESS STEEL FRONT TO BACK BRACING
Materials
- TOP: 18 GAUGE TYPE 300 STAINLESS STEEL
- FRONT APRON: 18 GAUGE TYPE 300 STAINLESS STEEL
- BACKSPLASH: 18 GAUGE TYPE 300 STAINLESS STEEL
- SIDES: 18 GAUGE TYPE 300 STAINLESS STEEL
- LEGS AND BRACING
- BOLT ON 1-5/8” STAINLESS STEEL LEGS FOR FAST INSTALLATION
- 1-1/4” FRONT TO BACK BRACING
- 1” ADJUSTABLE STAINLESS STEEL BULLET FEET
- 1-7/8” DRAIN PLUG
- 1” MPT 3-1/4” LONG DRAIN CONNECTION
Specifications
| Model |
UBIB-1836-CP7 |
| Dimensions |
32.5" H x 36" W x 18" D |
| Approximate Weight |
191 lbs. |
What our Experts Think
-
Space-Saving Slim Design – 18" x 36" footprint fits tight bar layouts while maximizing efficiency.
-
7-Circuit Cold Plate – Keeps soda, mixers, and cocktails chilled directly through the ice for consistent drink quality.
-
Generous Ice Storage – Holds enough ice to support steady bar service during peak hours.
-
Durable Stainless Steel Build – Built to withstand heavy commercial use and simplify cleaning.
-
Professional-Grade Reliability – John Boos delivers NSF-certified bar equipment trusted in restaurants and nightclubs.
Q&A
Q: What are the dimensions of this John Boos underbar ice bin?
A: It measures 18" wide x 36" deep, offering a slim design that saves space behind the bar.
Q: What does the 7-circuit cold plate do?
A: The cold plate chills up to seven beverage lines, keeping drinks cold from dispenser to glass.
Q: How much ice can this slim line bin hold?
A: It provides ample ice storage capacity while maintaining a compact footprint, perfect for busy bars.
Q: What material is the unit built from?
A: Made of stainless steel, it delivers strength, durability, and easy cleaning.
Q: Is this unit ideal for commercial bar use?
A: Yes, it is designed for professional bar setups, ensuring efficiency and reliability during peak service hours.
Maintenance Tips
-
Empty and rinse ice bin after each use to maintain cleanliness.
-
Wash stainless steel surfaces with mild soap and warm water; avoid abrasives.
-
Dry thoroughly to prevent spots, stains, and corrosion.
-
Sanitize the bin interior regularly to meet health and safety standards.
-
Flush and inspect the 7-circuit cold plate as recommended for reliable performance.
-
Keep drain area clean and clear to avoid blockages.
