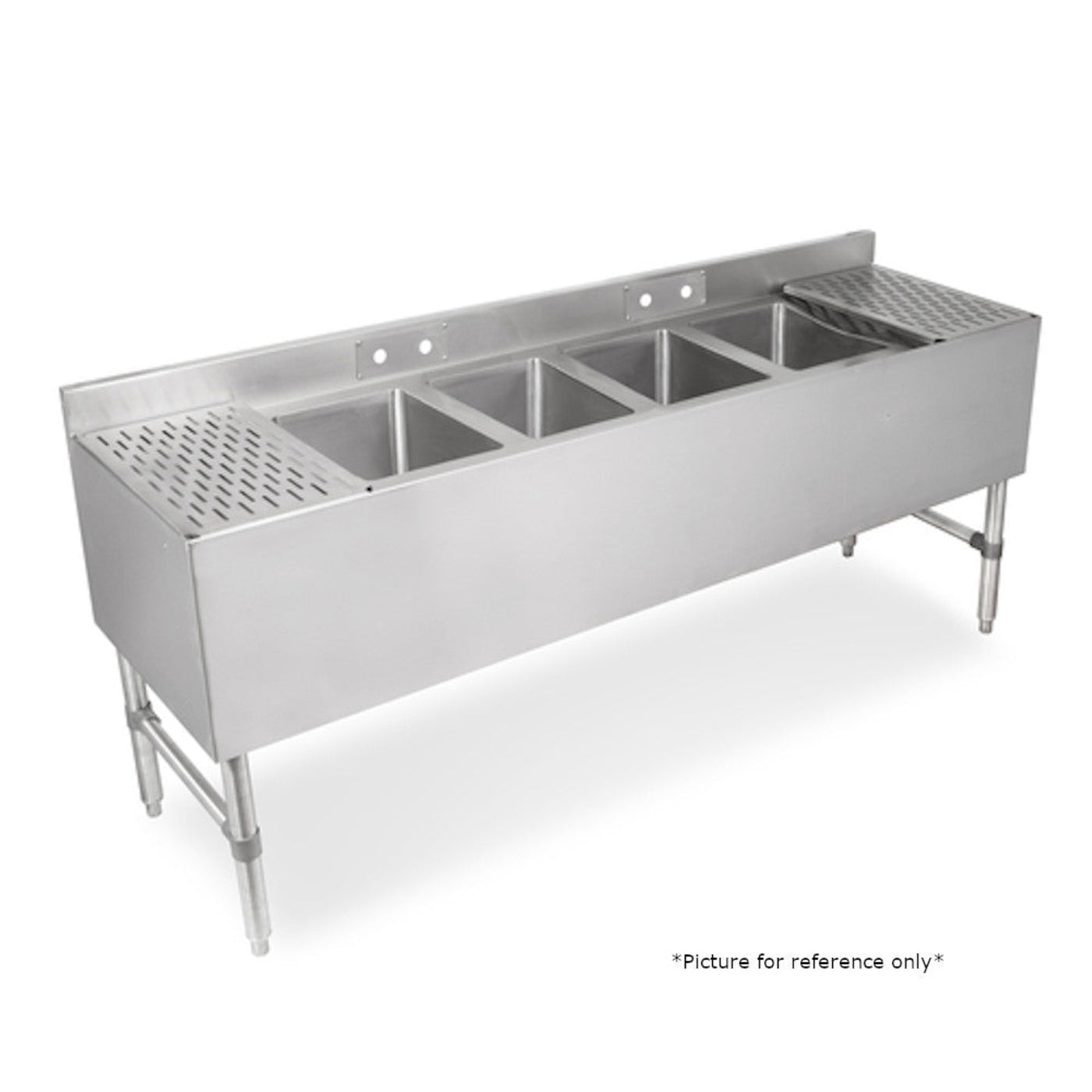

John Boos UBS4-1896-2D24 Slim Line 4-Compartment Underbar Sink, 24" Drainboards
When you purchase the John Boos UBS4-1896-2D24, you are investing in a reliable compartment sink. It has four 10” wide x 14” front-to-back x 10” deep compartments. Each has a set of removable splash mount faucet holes with 4” centers to accommodate a variety of faucet types (faucet not included). The 1-1/2” drains and overflow stand pipes keep your plumbing working reliably.
The UBS4-1896-2D24 is made of stainless steel. This 18/300 stainless steel build ensures longevity. It also makes it simple to maintain. Just wipe it clean! The 3” backsplash also improves the sanitation of surrounding areas by keeping spills and splashes confined to the sink and not on the walls. This prevents stains and potential water damage.
It has 24” drainboards on both its left and right side with a removable perforated insert.
Features
- ALL 18 GAUGE STAINLESS STEEL CONSTRUCTION
- TYPE 300 STAINLESS STEEL WITH #4 POLISH, SATIN FINISH
- SLIM LINE 18” DEEP FRONT TO BACK
- STANDARD PRE-DRILLED HOLES ON SIDES FOR ATTACHING ADJACENT UNITS TOGETHER
- REMOVABLE FAUCET PLATES WITH 4” ON-CENTER SPLASH MOUNT FAUCET HOLES
- REMOVABLE PERFORATED DRAINBOARD INSERTS FOR INCREASED AIR CIRCULATION
- CREASED DRAINBOARDS FOR IMPROVED DRAINAGE
- STAINLESS STEEL 1-1/4” FRONT TO BACK BRACING
- 3” HIGH BACKSPLASH
- (2) SETS OF SPLASH MOUNT FAUCET HOLES WITH 4” CENTERS
- 1-1/2” DRAINS & OVERFLOW STAND PIPES (PB-OVF-BS) INCLUDED
- FABRICATED SINK BOWL: (4) 10” W x 14” FRONT-TO-BACK x 10” DEEP
- BOLT ON 1-5/8” STAINLESS STEEL LEGS FOR FAST INSTALLATION
- 1” ADJUSTABLE STAINLESS STEEL BULLET FEET
- STAINLESS STEEL SIDE BRACING
- Z-CLIP TO MOUNT TO WALL
- BOLT TO ADJACENT UNDERBAR PIECE
- 1-7/8” DRAIN WITH BASKET
- 1-1/2” NPS DRAIN CONNECTION
Specifications
| Model |
UBS4-1896-2D24 |
| Dimensions |
32.5" H × 96" W × 18" D |
| Approximate Weight |
128 lbs |
What our Experts Think
-
Four Compartments: Streamlines washing, rinsing, sanitizing, and soaking in one slim, efficient unit.
-
Generous 24" Drainboards: Ample drying space on both sides enhances workflow and keeps bar areas tidy.
-
Slim Line Design: Perfect for tight underbar spaces without sacrificing capacity or functionality.
-
Durable Stainless Steel: Corrosion-resistant and built for the rigorous demands of busy bars.
-
Reinforced Frame: Provides stability for heavy daily use.
Q&A
Q: What is the John Boos UBS4-1896-2D24?
A: A slim line, 4-compartment underbar sink designed for compact spaces in commercial bars and kitchens.
Q: What are the sink compartment sizes?
A: Each compartment measures approximately 18" x 18" x 12" deep for efficient washing and rinsing.
Q: What materials is the sink made from?
A: Made from heavy-duty stainless steel for durability and corrosion resistance.
Q: Does it include drainboards?
A: Yes, it features 24" drainboards on both sides for drying and workspace.
Maintenance Tips
-
Clean daily with mild soap and warm water.
-
Avoid abrasive cleaners to protect stainless steel surfaces.
-
Dry all compartments and drainboards after use to prevent water spots and corrosion.
-
Regularly check and tighten sink fittings and drainboards.
-
Remove food debris promptly to prevent clogs.
-
Use soft cloths to maintain the finish.
