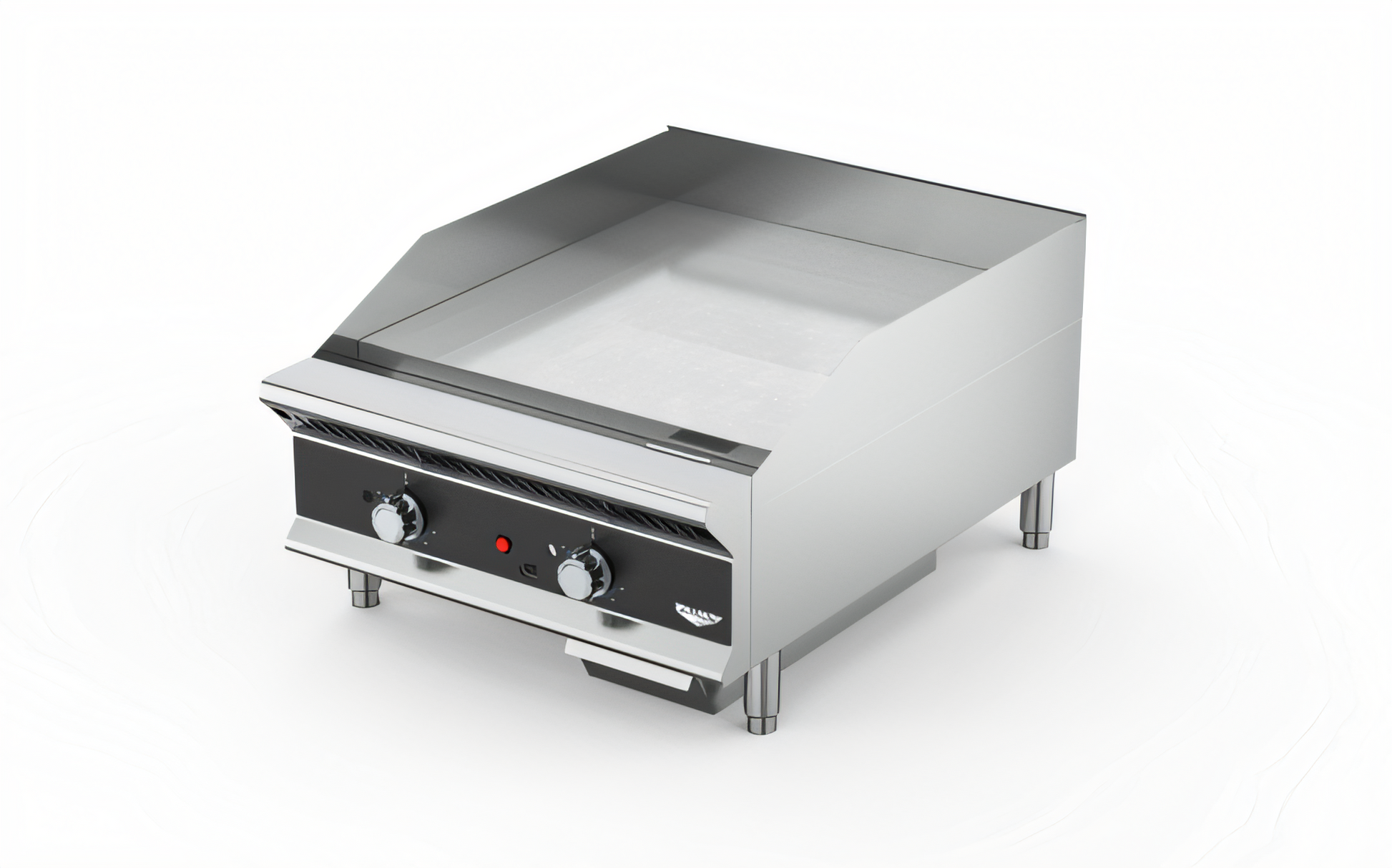

Vollrath 24" Heavy-Duty Gas Griddle
Countertop • 60,000 BTU • Natural-Gas-Ready w/ LP Conversion Kit
Built for steak houses, diners, pubs, and any high-volume kitchen, the Vollrath 24" Heavy-Duty Flat-Top Gas
Griddle pairs rugged construction with precision performance. Two powerful
U-shaped burners blanket a polished 1" thick steel plate in even heat, letting you sear, sauté, and toast with unbeatable consistency—all in a space-saving countertop footprint.
Key Features & Benefits
- 60,000 BTU total output from two 30,000 BTU stainless U-shaped burners.
- 12" individually controlled heating zones maximize versatility across the 24" wide plate.
- Polished 1" (2.5 cm) thick steel griddle plate delivers fast recovery and superior heat retention.
- Natural-gas-ready; LP conversion kit included for quick field change-over.
- Metal control knobs are guaranteed for life against breakage.
- Seam-welded plate edges eliminate grease & food traps for easier cleaning.
- Divided stainless-steel drip pan helps prevent overflow and reduces sloshing during removal.
- 2 mm-thick stainless side & back splashes contain mess and stay rigid under heavy use.
- Bull-nose front edge adds operator safety and comfort.
- Heavy-duty 4" adjustable legs simplify leveling and provide vital airflow beneath the unit.
- Standard ¾" NPT rear gas connection streamlines installation.
- Zero-clearance sides against non-combustible surfaces conserve precious line space.
Specifications
| Model(s) |
GGHDM-24 (Manual) / GGHDT-24 (Thermostatic) |
| Total BTU |
60,000 BTU/hr (2 × 30,000 BTU burners) |
| Heat Zones |
2 independent 12" zones |
| Cooking Surface |
23.8" W × 24.6" D (60.5 cm × 62.5 cm) |
| Overall Dimensions |
24.1" W × 32.38" D × 16.63" H |
| Plate Thickness |
1" (2.5 cm) polished steel |
| Gas Connection |
¾" NPT (rear, 4⅜" above counter) |
| Certifications |
ETL, ETL Sanitation, cETL |
| Warranty |
1-Year Standard Limited Warranty on parts & labor
(metal knobs: lifetime) |
Installation Notes
- Unit must sit on the included 4" legs to ensure proper ventilation.
- Maintain at least 6" clearance at the rear; zero side clearance required from non-combustible surfaces.
- For combustible installations, follow local codes and Vollrath installation manual.
Need help or have a warranty question? Contact Vollrath Technical Services at
800-628-0832.
