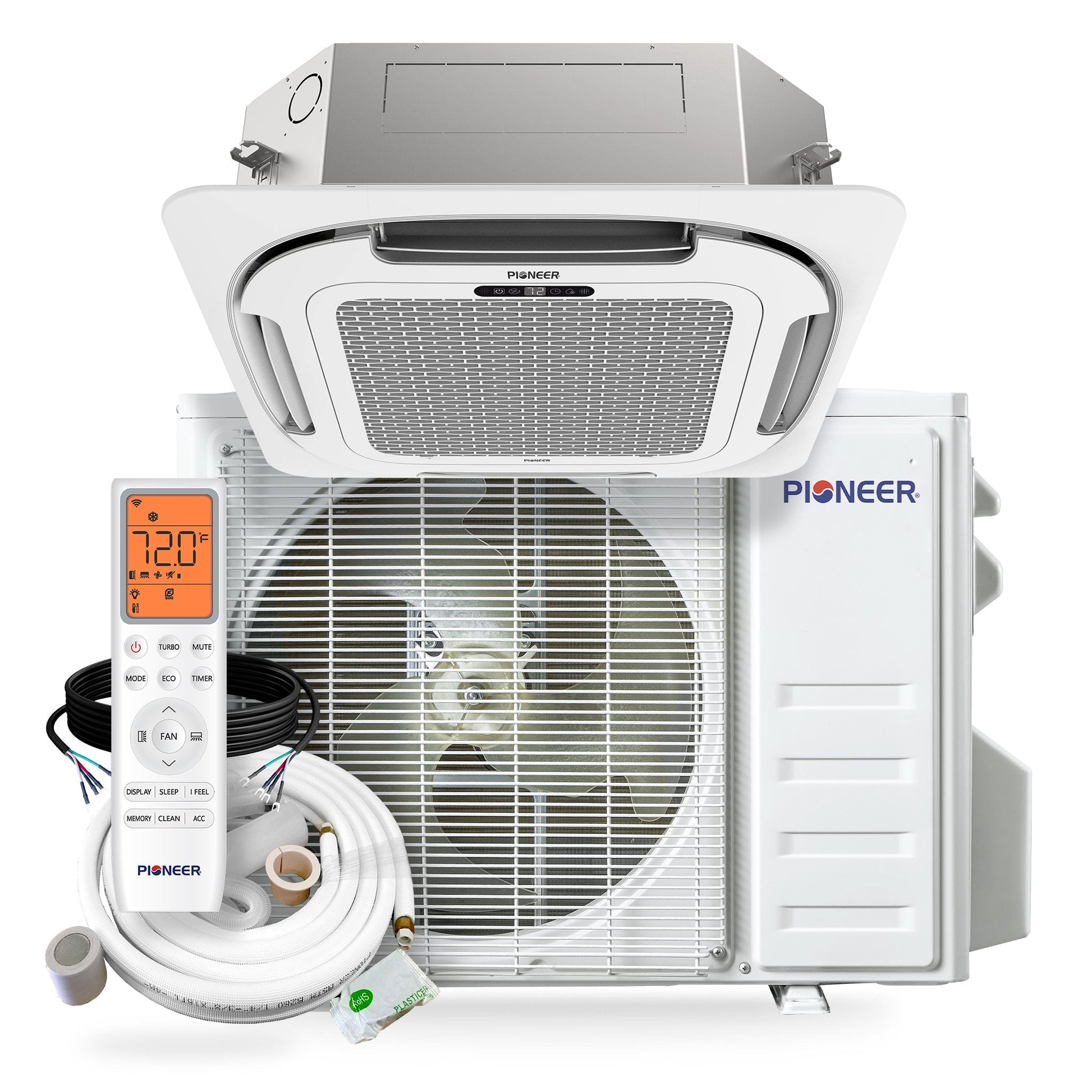

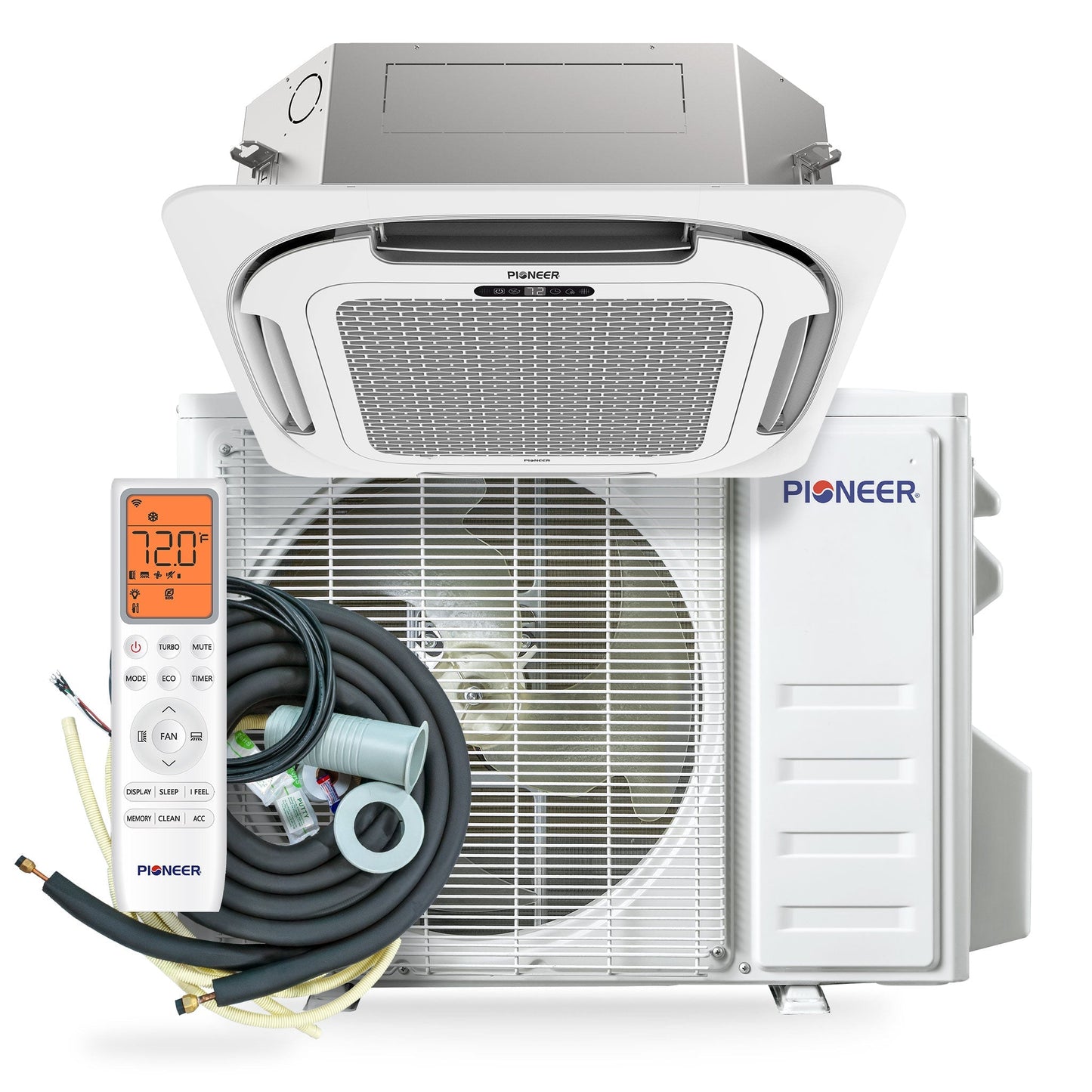

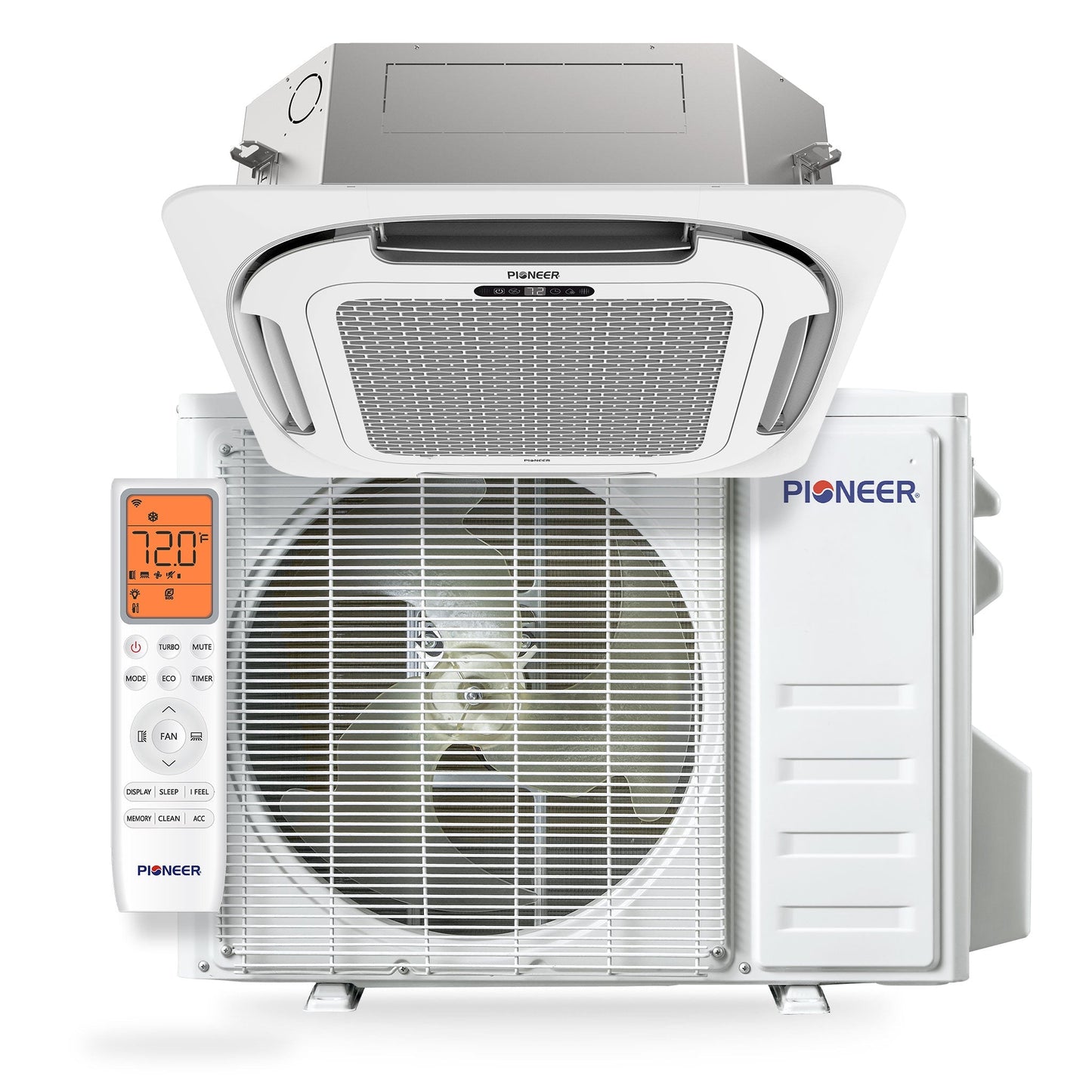

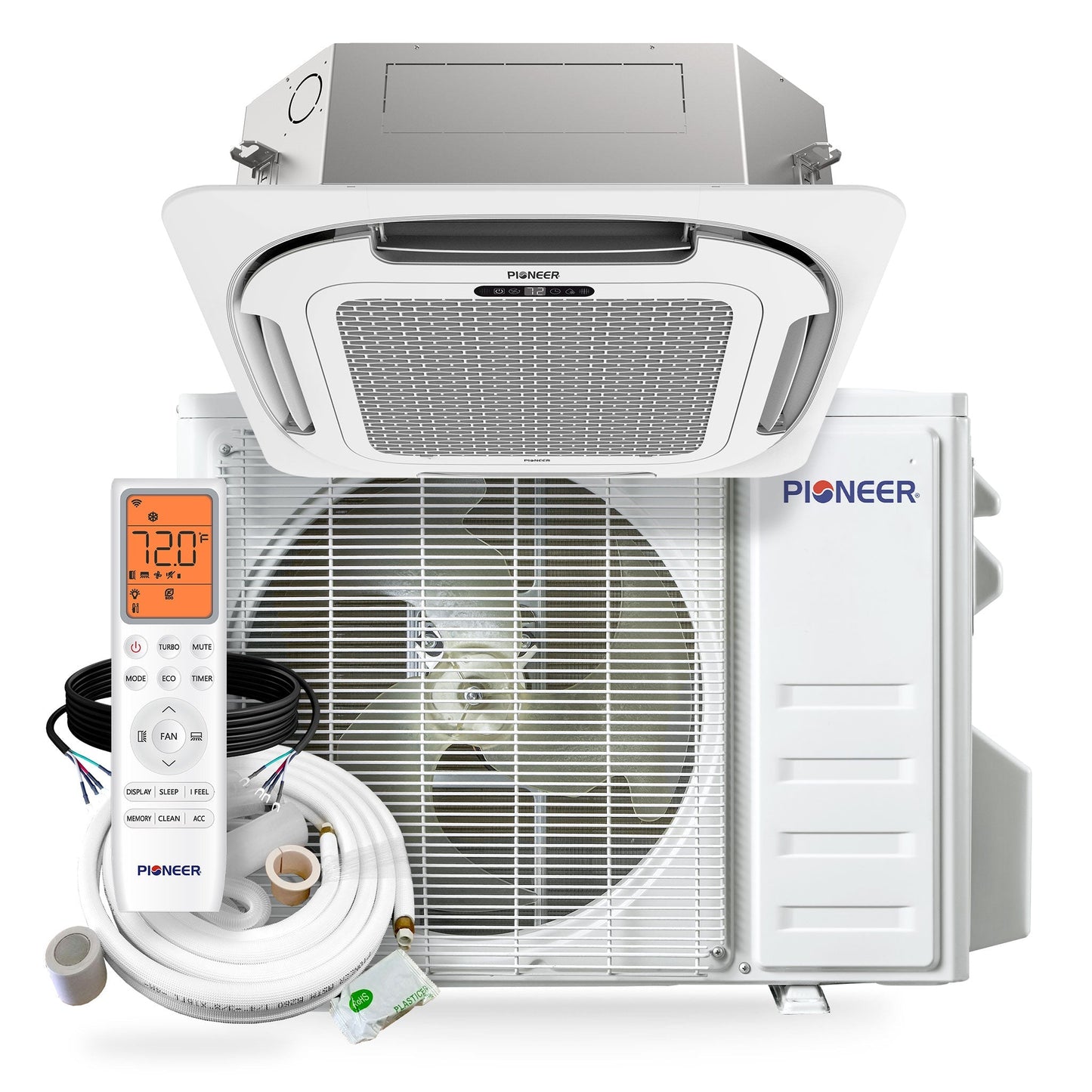

Pioneer Quantum Ultra 24,000 BTU 22.5 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - CYT024GLSI24RL-10S

Pioneer Quantum Ultra 24,000 BTU 22.5 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set - CYT024GLSI24RL-10S

• High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
• Cooling capacity: 23,000 BTU/H with 22.5 SEER2 / 11.7 EER2 efficiency
• Heating capacity: 25,000 BTU/H with 10.4 HSPF2 / 3.6 COP2 efficiency
• Voltage: 208/230V, 60Hz, 1Ph
• Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
• Variable-Speed DC Inverter Driven Performance
• Factory-Precharged with Environmentally Friendly R454b Refrigerant
• Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)

Features

• Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
• Dual-Drainage Ports
• Washable, Reusable Air Filters
• Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

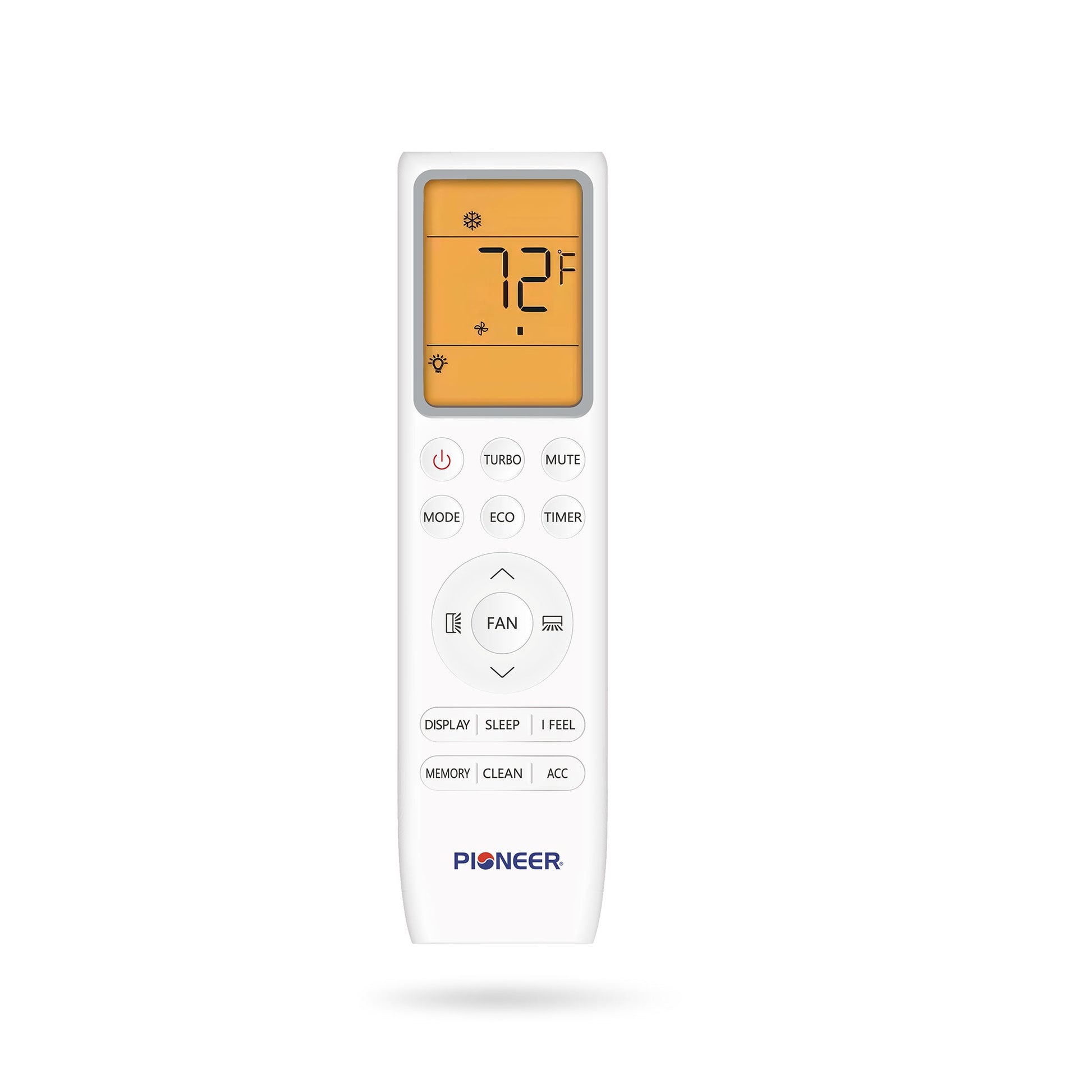

• Functional Remote with:
  • ECO and SLEEP Modes, for Energy-Conservation
  • Timer On/Off Control
  • TURBO, for Times of High-Demand
  • Self-Clean Cycle
  • MEMORY, to Recall Favorite Settings
  • IFEEL, to Detect and Adjust to Local Temperature

Technical Performance

• Energy Guide

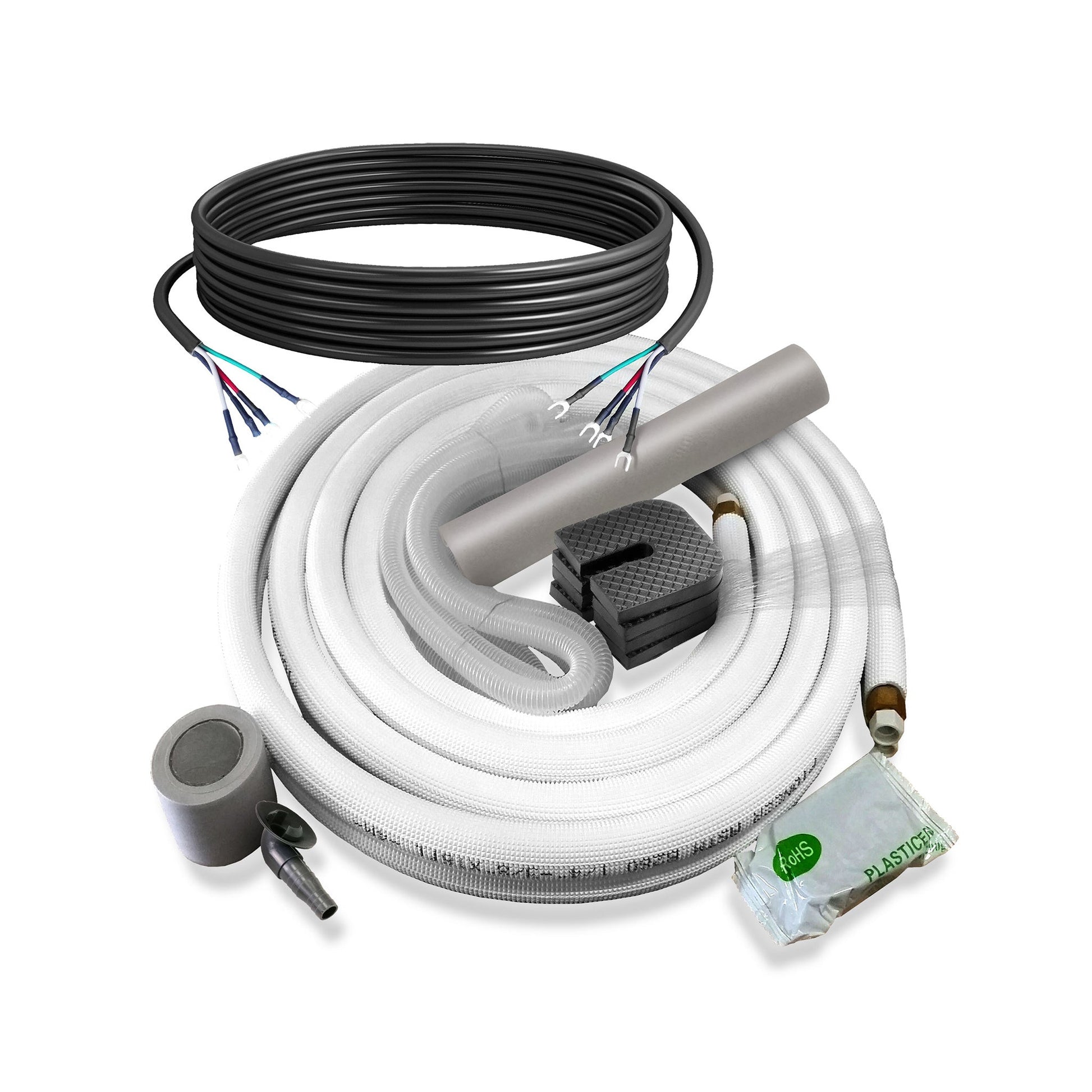

• System Kit
  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 23,000 BTU/h
  • Cooling Capacity Range: 7,550~25,200 BTU/h
  • Cooling SEER2: 22.5 BTU/W.h
  • Cooling EER2: 11.7 BTU/W.h
  • Heating Rated Capacity: 25,000 BTU/h
  • Heating Capacity Range: 8,700~28,300 BTU/h
  • Heating HSPF2 (Region IV): 10.4 / 8.4 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.6 / 2.0 W/W
  • Refrigerant Type: R454b
  • Suitable Area: 750~1,000 Sq.F
  • AHRI Reference: 217048761

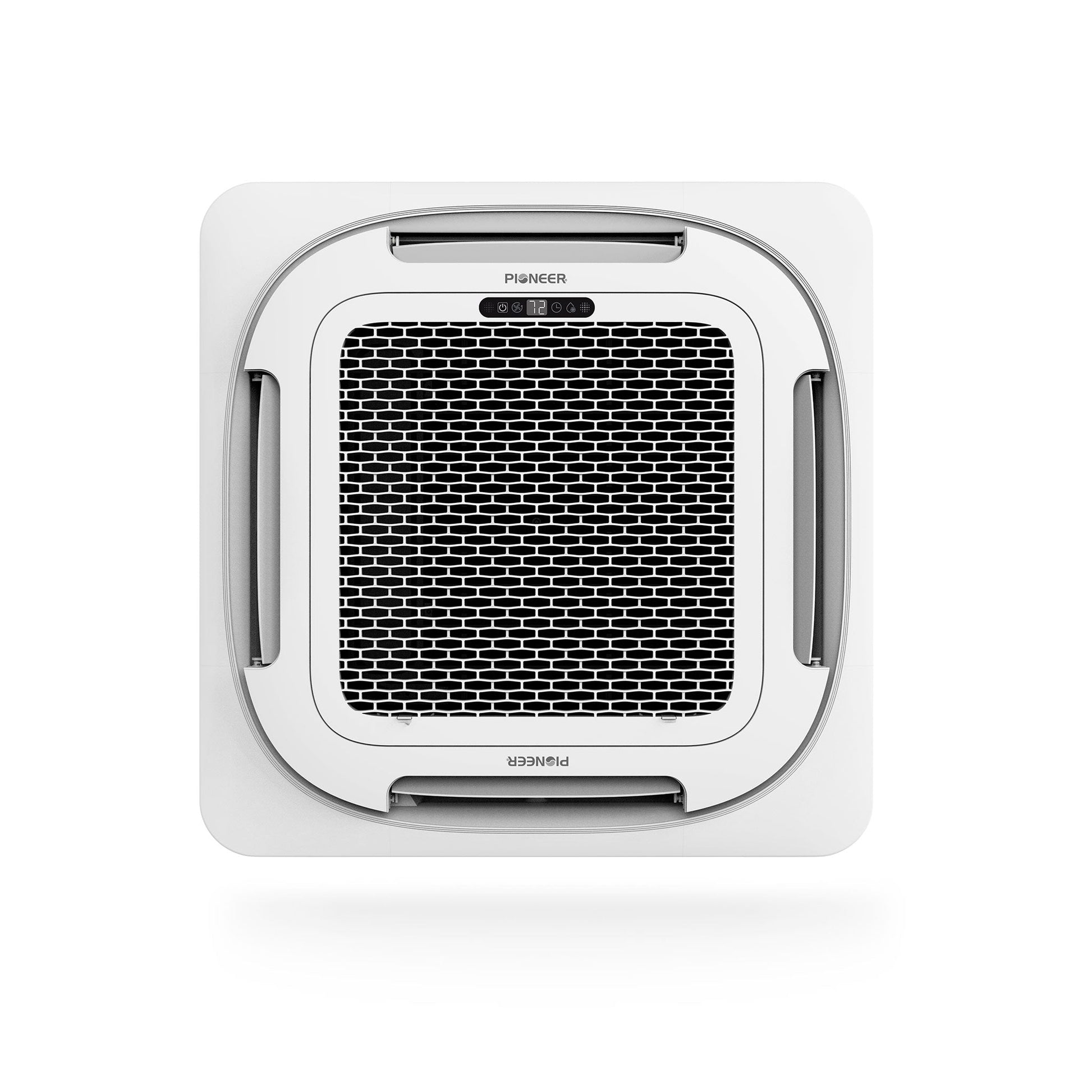

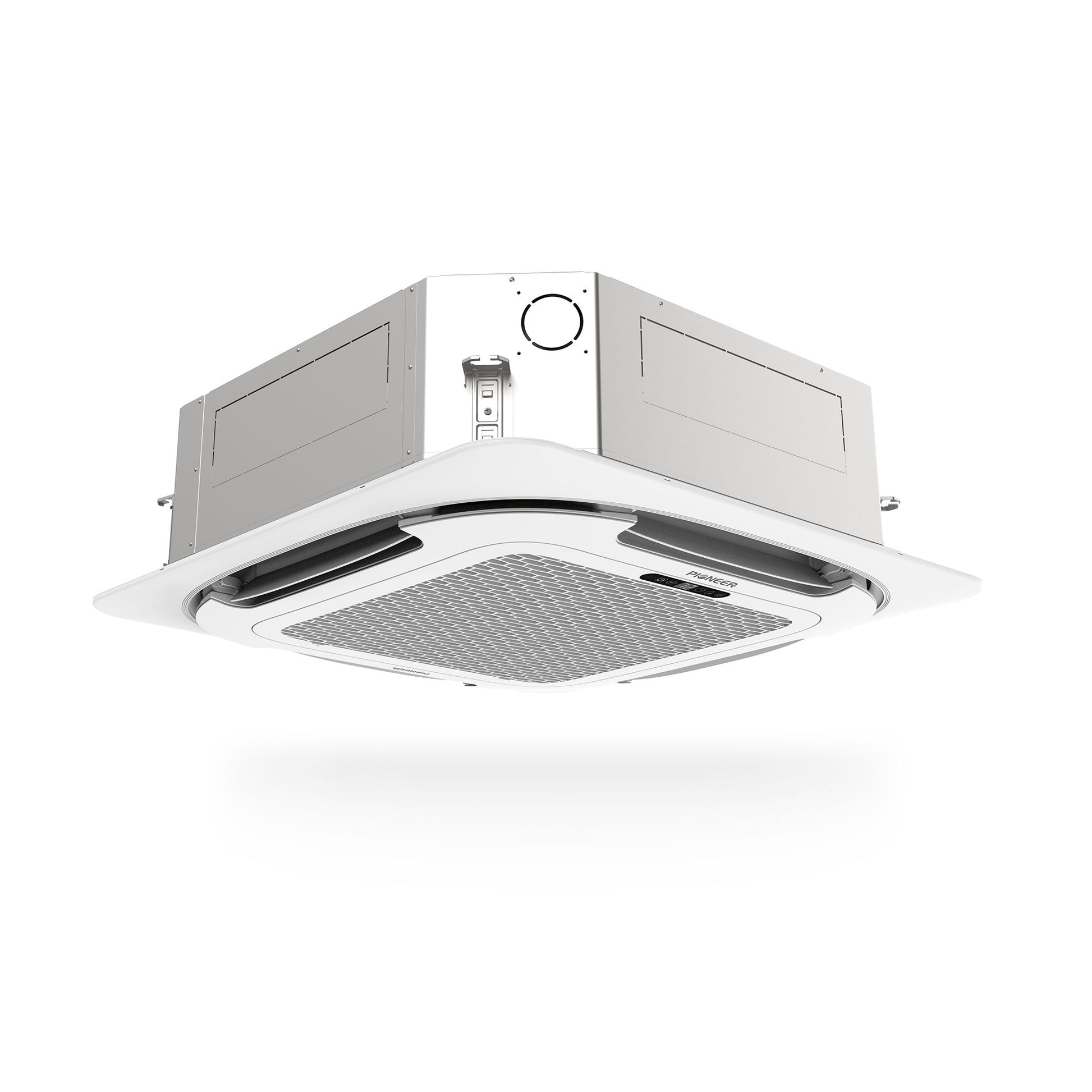

• Indoor Unit
  • Part Number: CT024GLSILSFHG
  • Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
  • Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
  • Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
  • Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
  • Net / Gross Weight: 51.8 / 59.5 lbs
• Decorative Panel
  • Part Number: CT2460DPNL
  • Product Dimensions (WDH): 37-3/8" x 37-3/8" x 2-7/8"
  • Carton Dimensions (WDH): 41-1/2" x 41-1/2" x 3"-1/2
  • Net / Gross Weight: 13.2 / 19.8 lbs

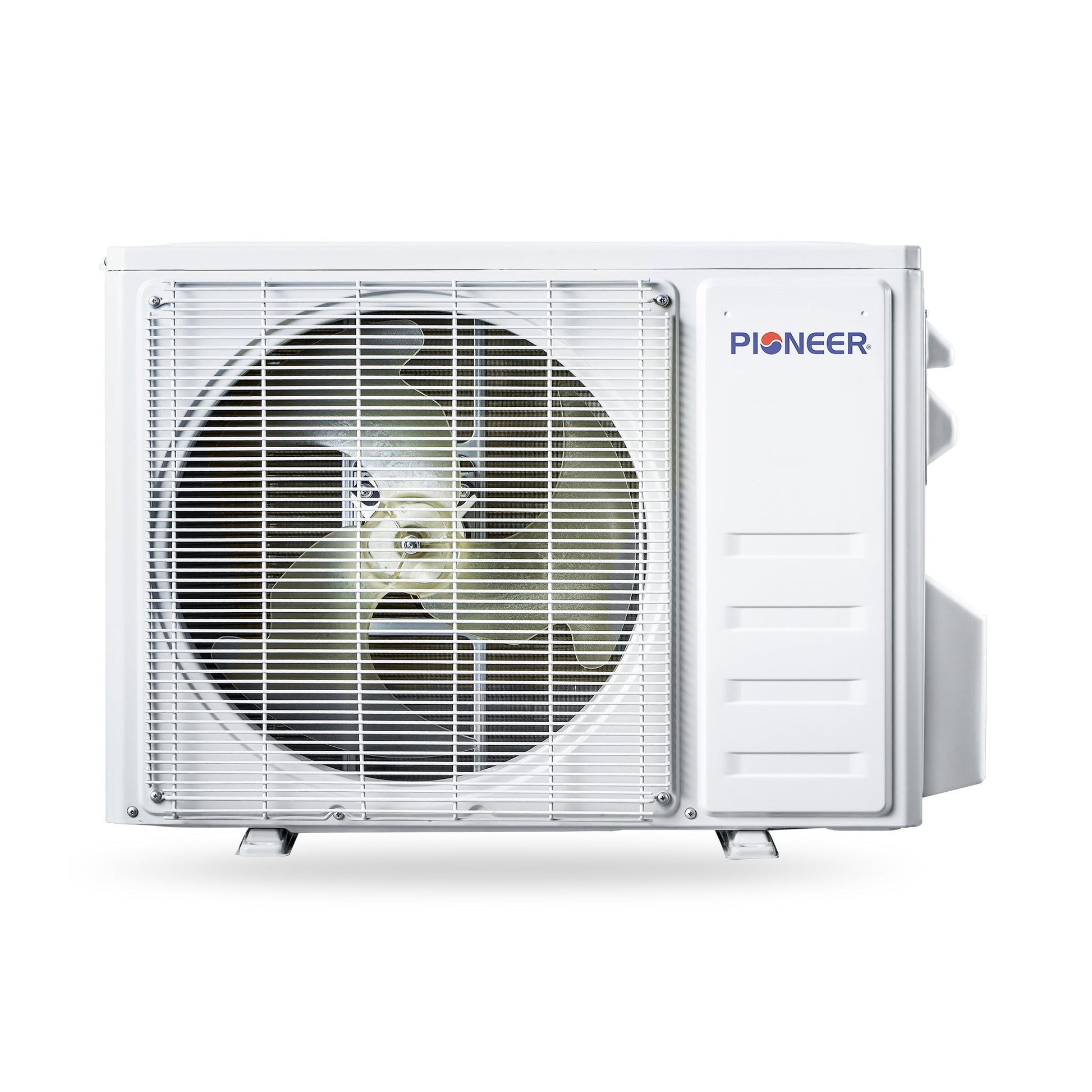

• Outdoor Unit
  • Part Number: YN024GLSI24RPG
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 54 dB(A)
  • Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
  • Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
  • Net / Gross Weight: 104.7 / 119.0 lbs.

Dimension Chart

What Our Experts Think

• 24,000 BTU capacity ideal for large rooms or open spaces.

• 22.5 SEER2 efficiency delivers energy savings and high performance.

• Ceiling cassette design provides 4-way airflow for even temperature distribution.

• Inverter heat pump ensures reliable heating and cooling year-round.

• Full set includes indoor and outdoor units for straightforward installation.

Q&A

Q: What room size is suitable for this system?
A: Recommended for spaces up to 1,200 sq. ft., depending on insulation.

Q: Does it provide both heating and cooling?
A: Yes, the inverter heat pump provides year-round comfort.

Q: Can it be ceiling-mounted?
A: Yes, the ceiling cassette design is specifically for ceiling installations.

Maintenance Tips

• Clean air filters monthly to maintain airflow and efficiency.

• Ensure ceiling vents are free of dust and debris.

• Keep the outdoor condenser area clear for optimal performance.

• Schedule annual professional servicing to maintain long-term reliability.
